Gray Shaker 1-1/4" Overlay 3 Drawer Base Cabinet 12", 15", 18", 21", 24", 30", 33" & 36" Wide

Our 1-1/4" Overlay Gray Shaker three drawer base kitchen cabinet, the perfect addition to any kitchen remodel or new construction project. These cabinets are ready to assemble (RTA) and feature three drawers, with the top and lower two drawers being equal in size. This sleek and practical design is sure to be a stylish and functional addition to your kitchen.

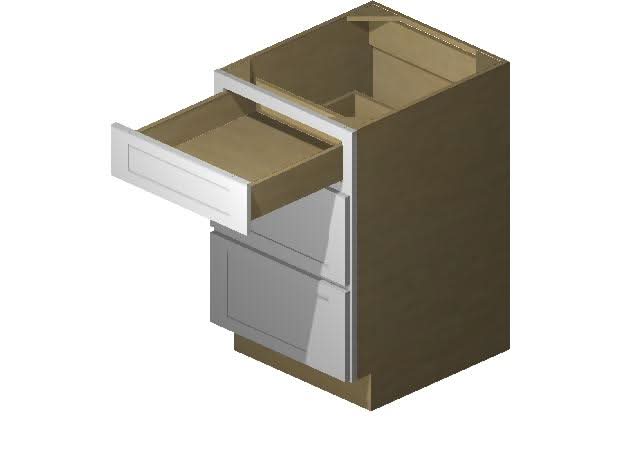

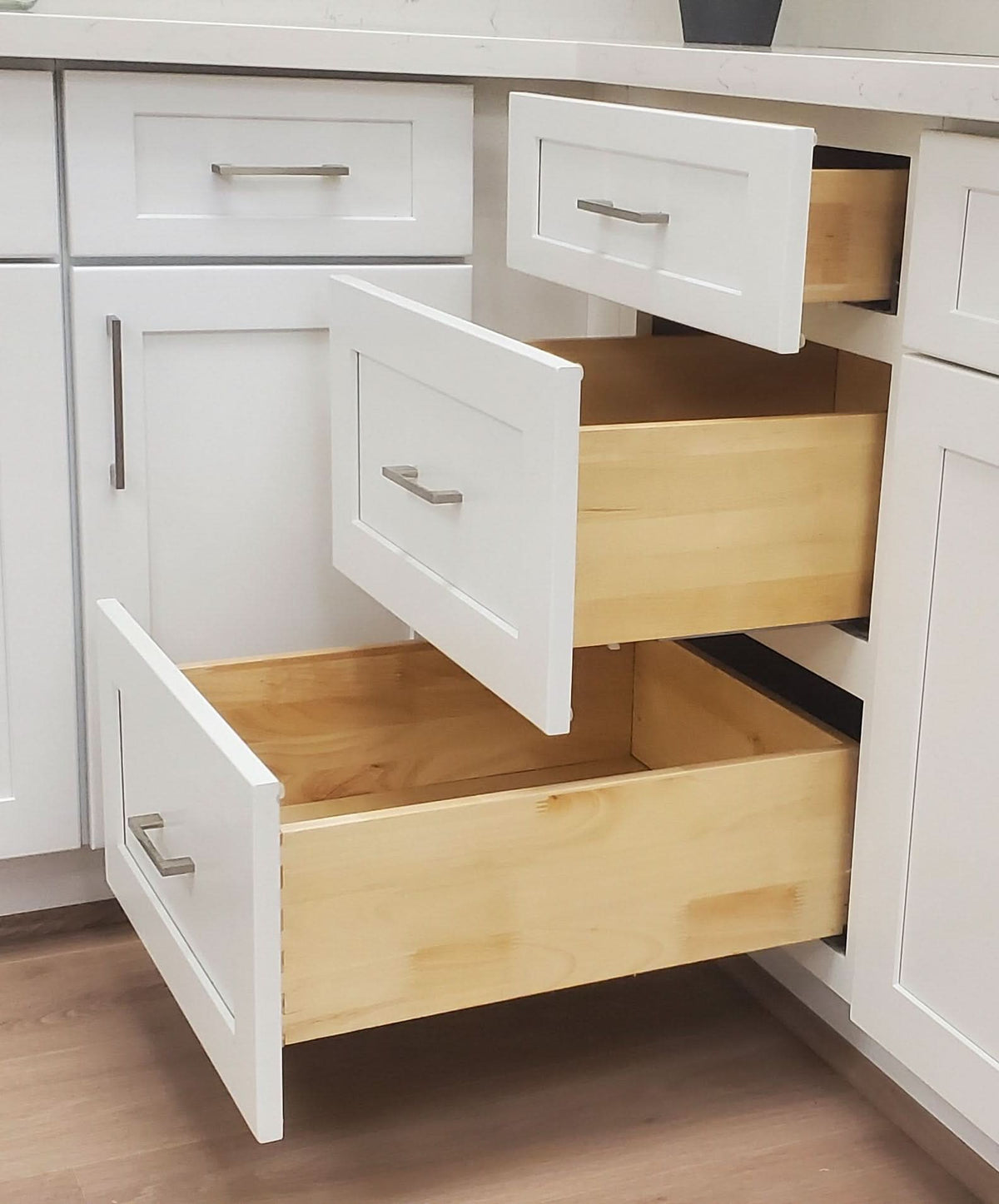

Each three drawer base cabinet 12" - 30" include one top drawer (6-1/2" tall face) and two lower drawers (10-3/4" tall face each) each with dovetail joinery on the drawer box which each "1-1/4" Overlays"  wider and taller than the opening (each direction) in the face frame with the minimum face frame showing. It is recommended that you glue the drawer box dovetail when assembling.

Adding extra drawers to a modern kitchen has replaced the use of "Pull out Shelves".

Drawer base cabinets do NOT include shelving.

Skin panels are not required for exposed sides which are painted to match the cabinet front..

The "1-1/4" Overlay" style cabinet has doors and drawer fronts that are wider and taller than the opening in the face frame with a minimum of face frame showing. Only 1/4" of face frame is exposed left and right of the Door(s) / Drawer(s) and one inch (1") of face frame exposed on base cabinets above the top drawer to allow for varying front edge lip on countertops.

Constructed with plywood and solid birch wood, these cabinets are built to last. The 1/2" - 7 ply panels and 3/4" solid birch wood face frame front provide strength and durability, while the gray satin cabinet exterior finish paint adds a sleek, modern touch. The interior is finished with polyurethane natural birch plywood for a polished look, and the rear panel features a grade A finished polyurethane natural birch interior with an engineered plywood backside for added rigidity.

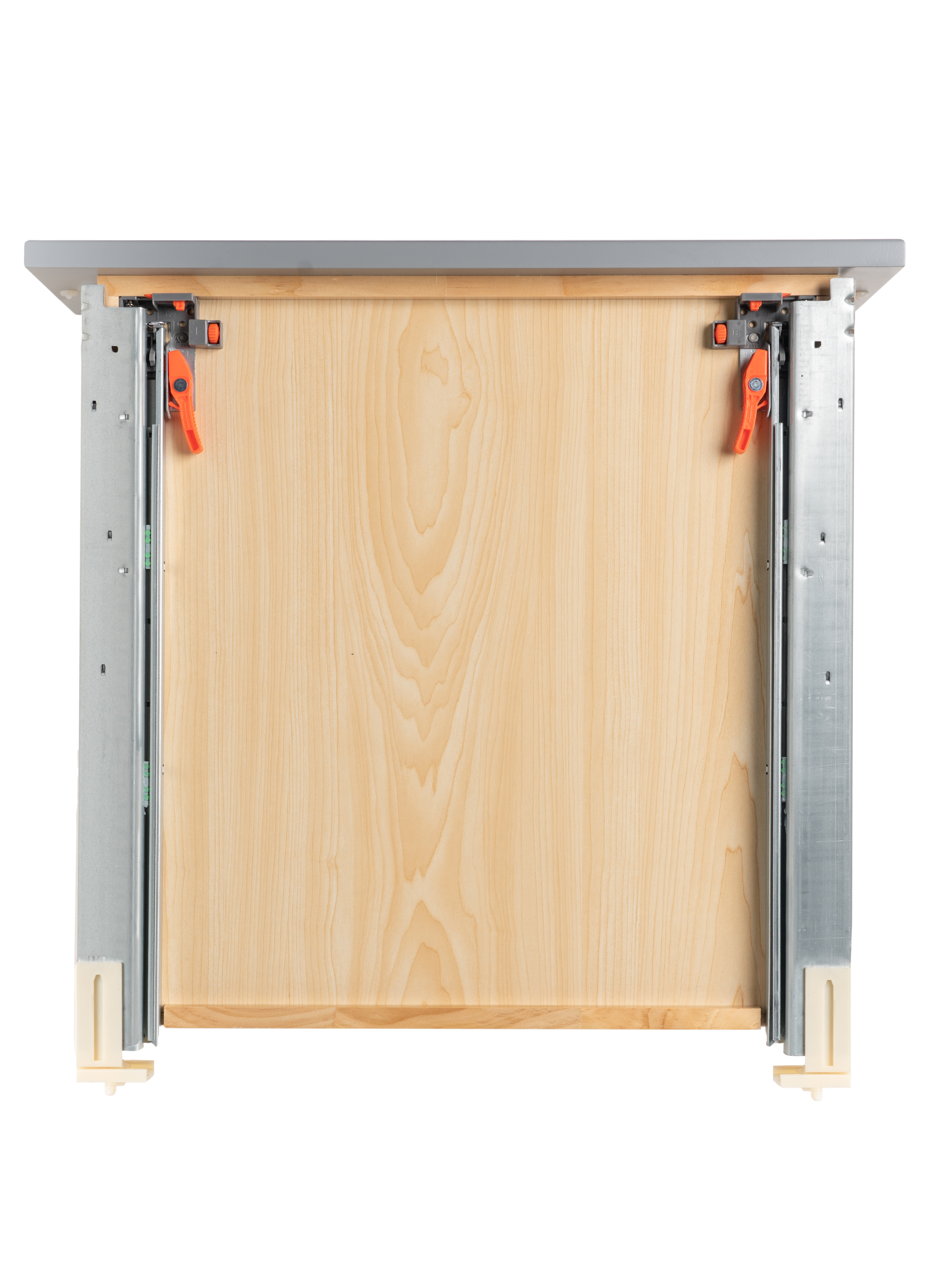

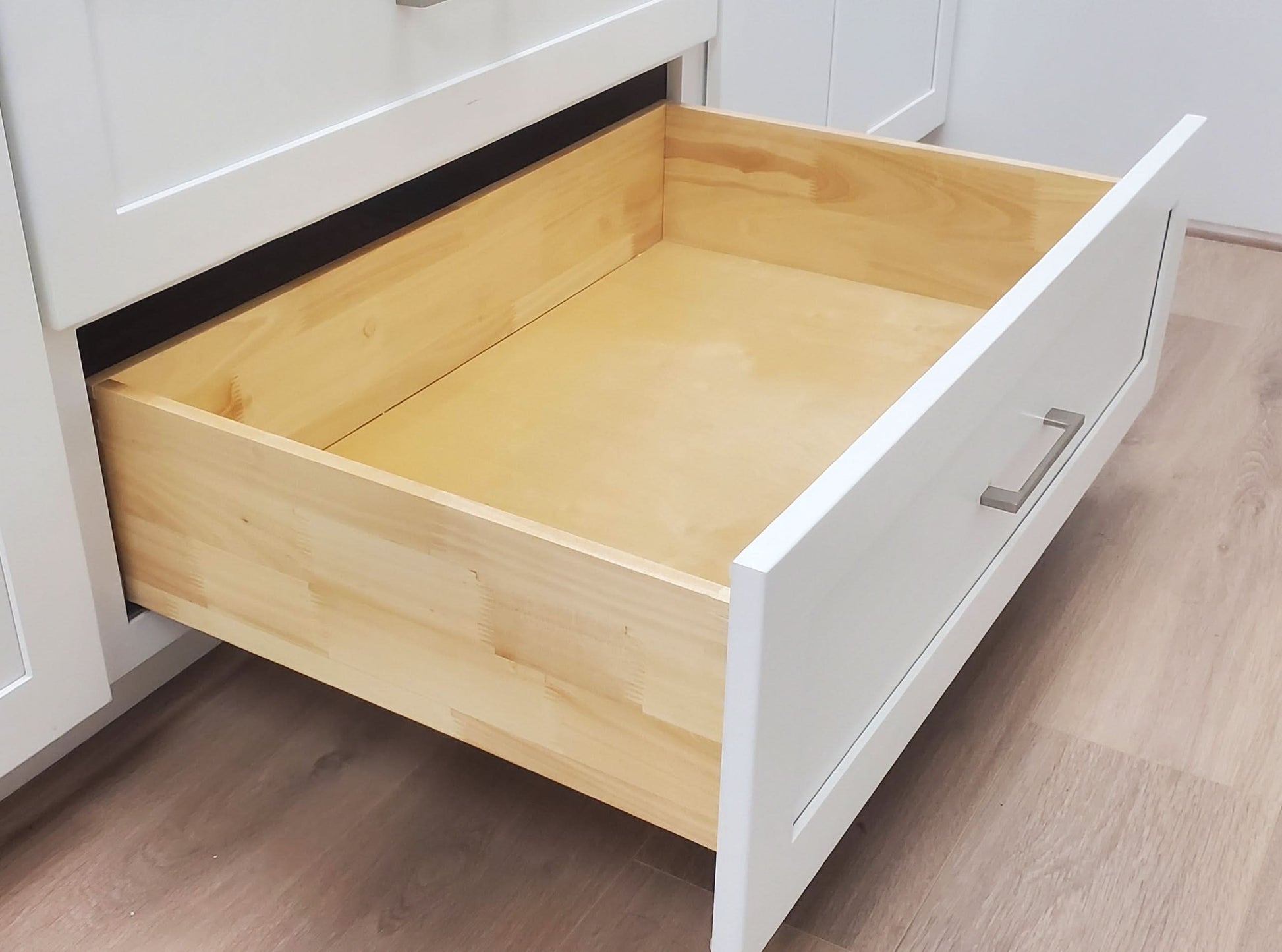

For added convenience, these cabinets come equipped with full extension, soft close undermount drawer glides by DTC (Click here for link) Model - D-Motion Faceframe SS30B Full Extension Undermount Slides with Peg Lock, ensuring a smooth and quiet operation every time. The drawers themselves are constructed with solid birch wood and dovetail joinery, and it is recommended to add a small amount of glue when assembling.

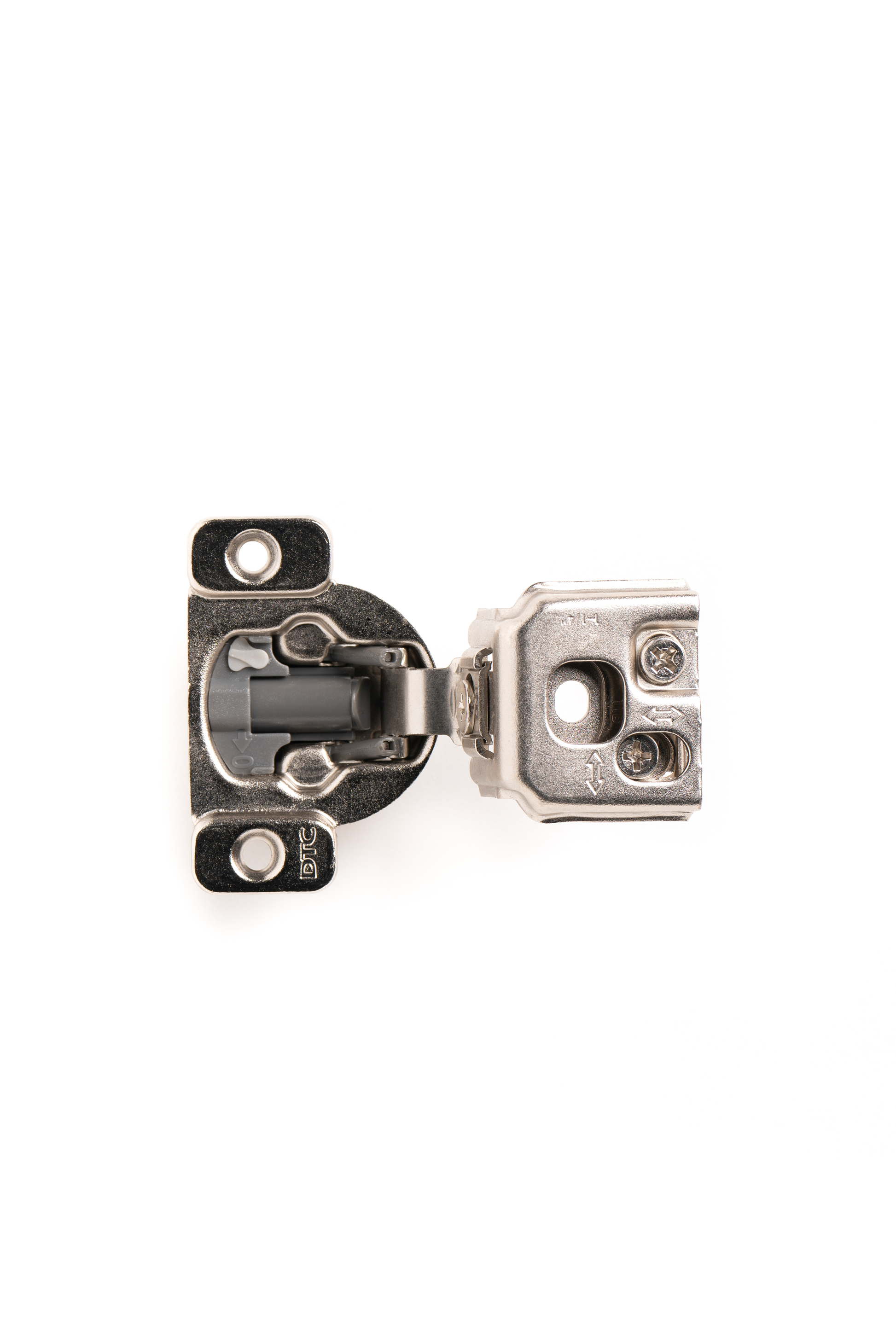

Cabinet hardware is lifetime warranty with full extension and soft close undermount drawer glides and European style hidden soft close hinges.

**All exposed sides of cabinetry are finished gray. Skin panels not required. Toe kick required skin panels to match exterior color.

These contractor grade A kitchen cabinets are suitable for both residential new construction and remodeling projects, and all necessary hardware for assembly is included (handles not included).

All hardware needed to assemble cabinetry is included.

Cabinet handles not included.

The cabinet box interior is natural birch with clear finish and shelving is coated with a clear UV protectant finish.

This is a stock cabinet, sold in the size options shown on this page. Check its dimensions under Construction.

Before ordering, confirm your finished opening, appliance clearances, and any exposed cabinet sides that need matching skin panels, toe kick, or trim.

In stock and ready to ship. Delivery is by RTA Wholesalers company vehicle or LTL freight carrier, or you can pick up at our Carson, CA warehouse. Estimated delivery and shipping details are managed through your customer portal.

Shipping is free. Pantry cabinets and large skin panels ship on full-size pallets, so orders that include them need a $2,500 minimum to qualify for free shipping.

Returns: stock cabinets can be returned within 30 days, unassembled and in the original box. There is no restocking fee; the customer pays return shipping.

Assembly details are listed under Construction. Plan assembly and installation after delivery. Lifetime hardware warranty.

What sizes is this base cabinet available in?

This base cabinet comes in 9 sizes: 12" Wide, 15" Wide, 18" Wide, 21" Wide, 24" Wide, 27" Wide, 30" Wide, 33" Wide and 36" Wide. Pick the size in the selector on this page; each size is its own SKU at its own price.

Can I order this cabinet in a custom size or color?

No. This is a stock cabinet, sold in the sizes and finish shown on this page.

Can I return this cabinet?

Yes, within 30 days, unassembled and in the original box. There is no restocking fee; the customer pays return shipping.

What should I confirm before ordering?

Confirm the cabinet width, height, and depth, your finished opening, appliance clearances, and any exposed sides that need matching panels or trim.
