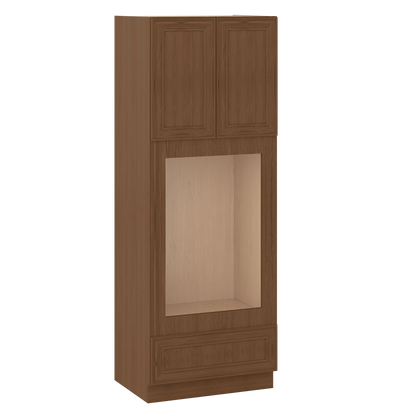

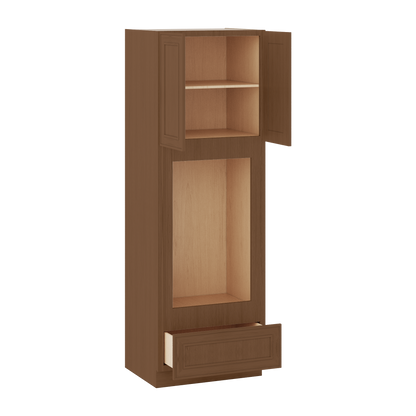

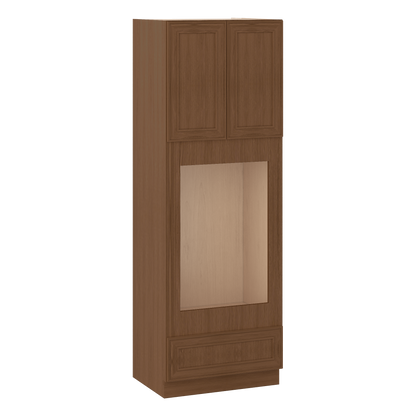

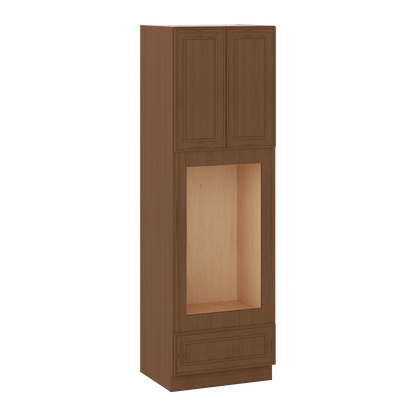

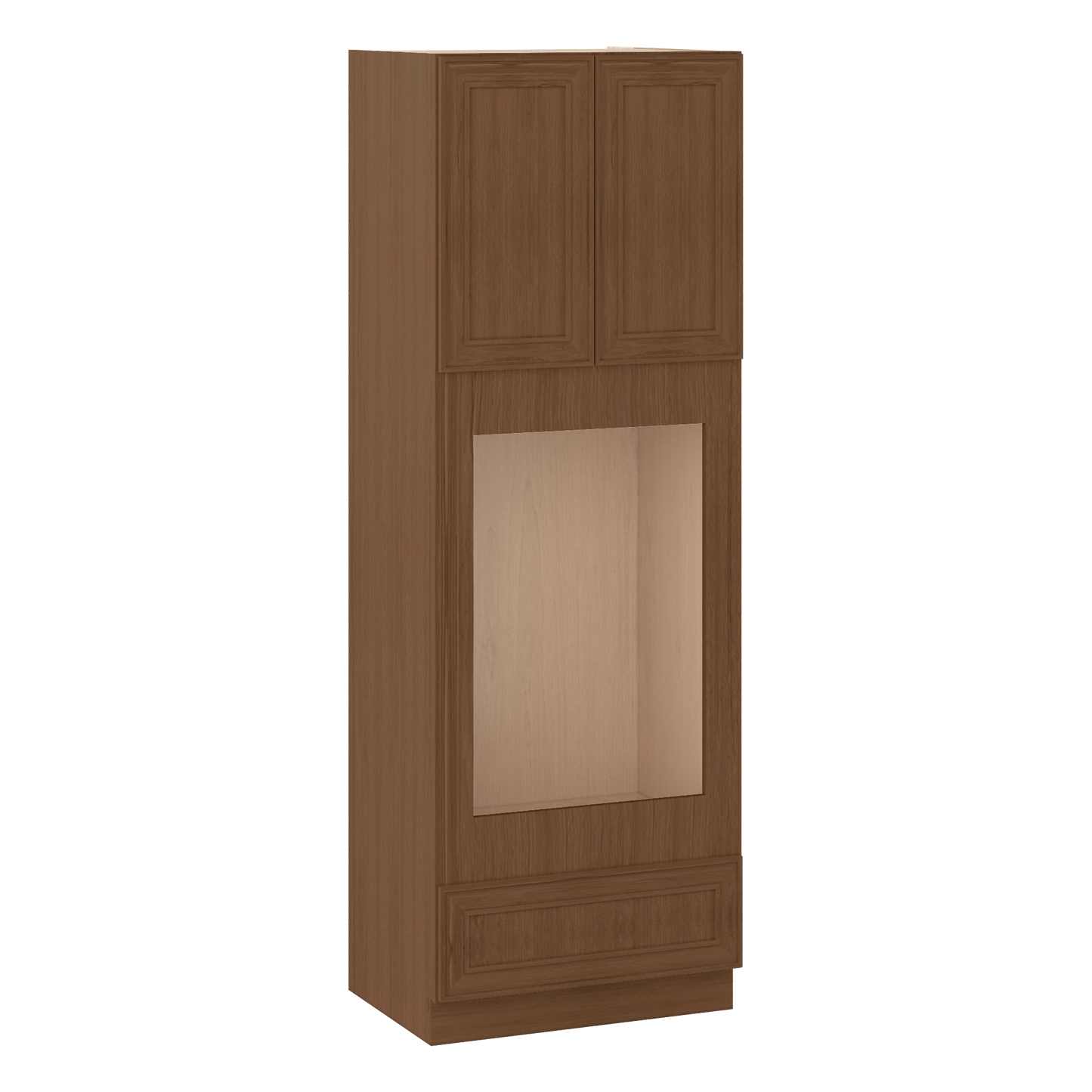

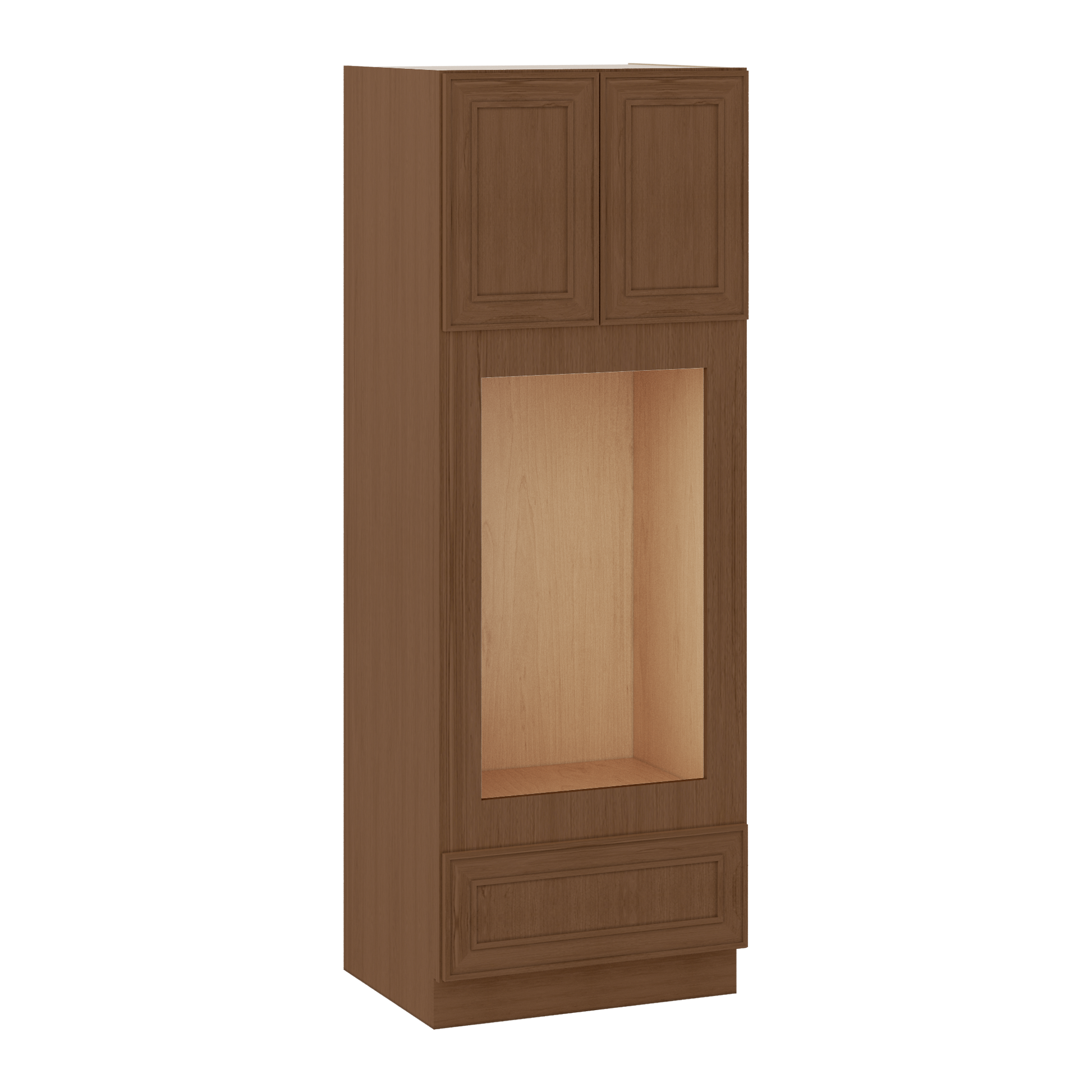

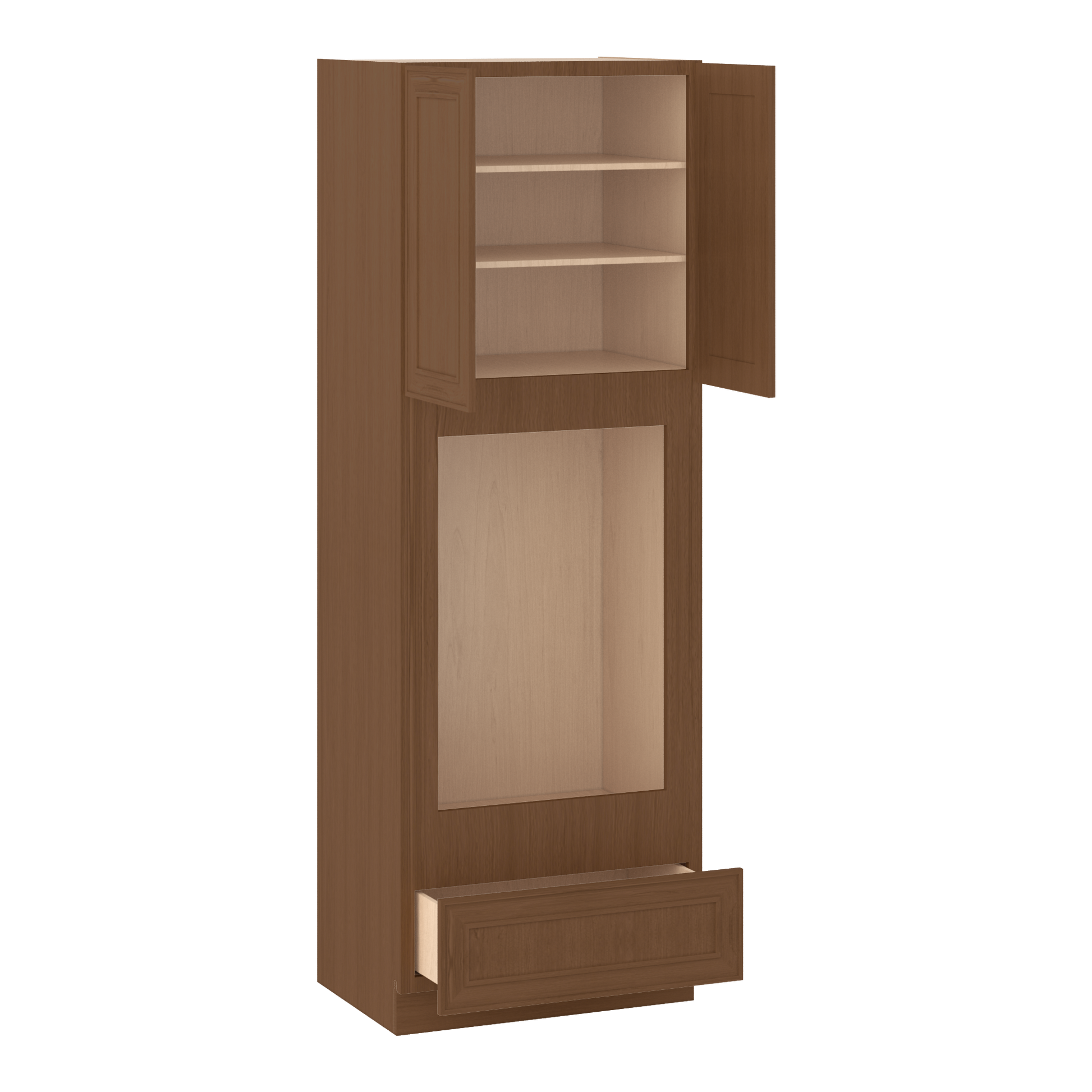

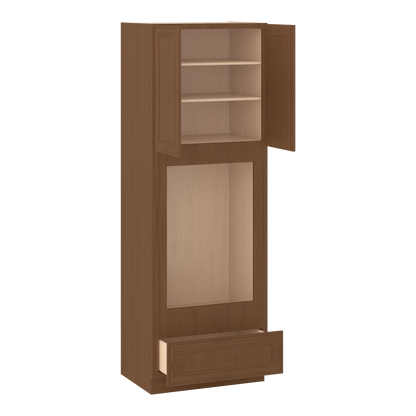

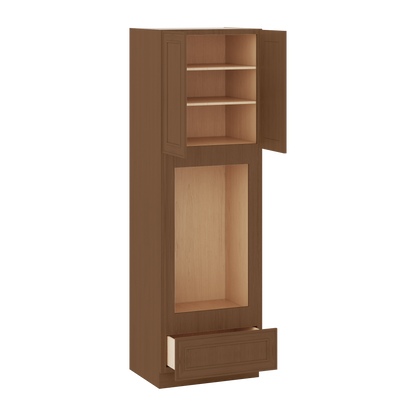

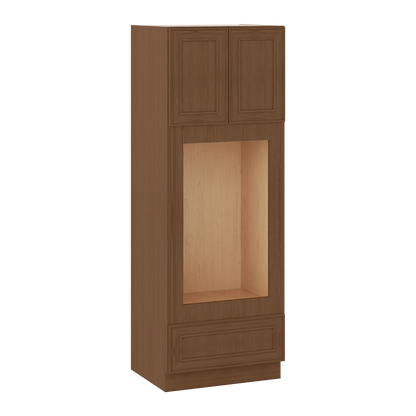

Wall Oven 30" & 33" Wide Elegant Craftsman Mocha Shaker 1-1/4" Overlay Cabinet

The Elegant Craftsman Mocha Shaker Wall Oven cabinet brings the line's rich, milk-chocolate finish to the hardest-working vertical in the kitchen. Built to frame a single or double wall oven, it pairs trend-forward Mocha-stained oak with a true Craftsman Shaker front for a high-end custom look at a ready-to-assemble price—the perfect anchor for any kitchen remodel or new construction project.

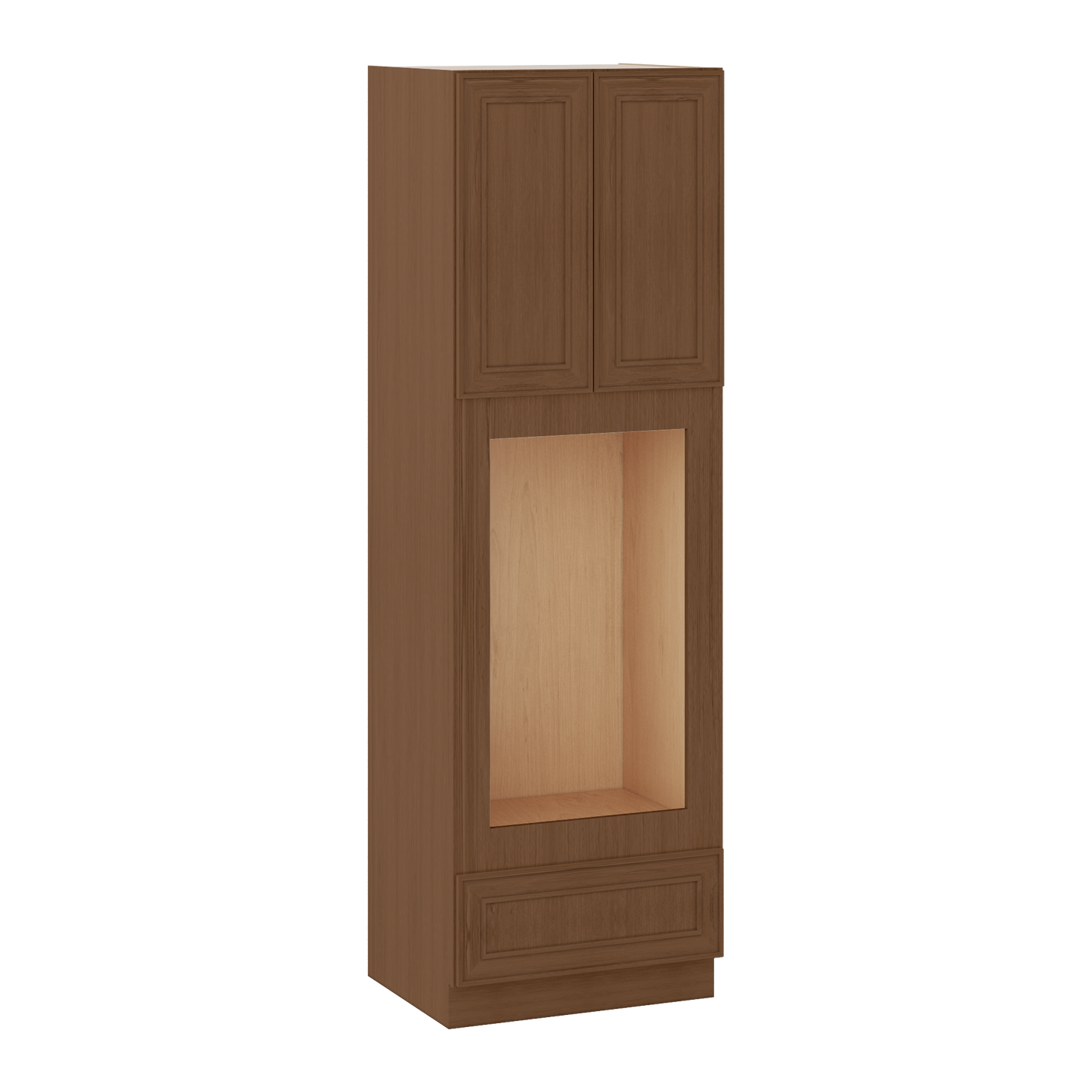

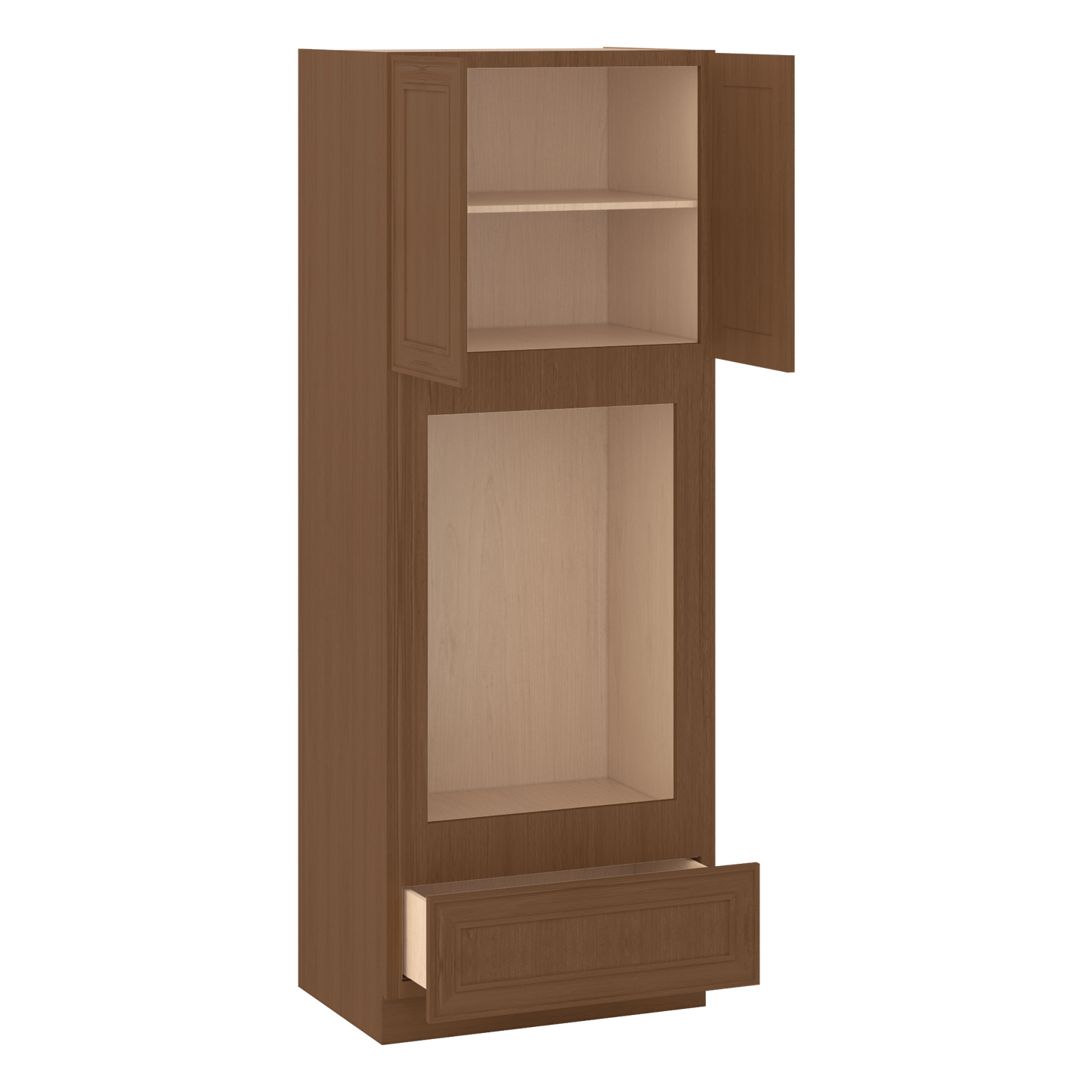

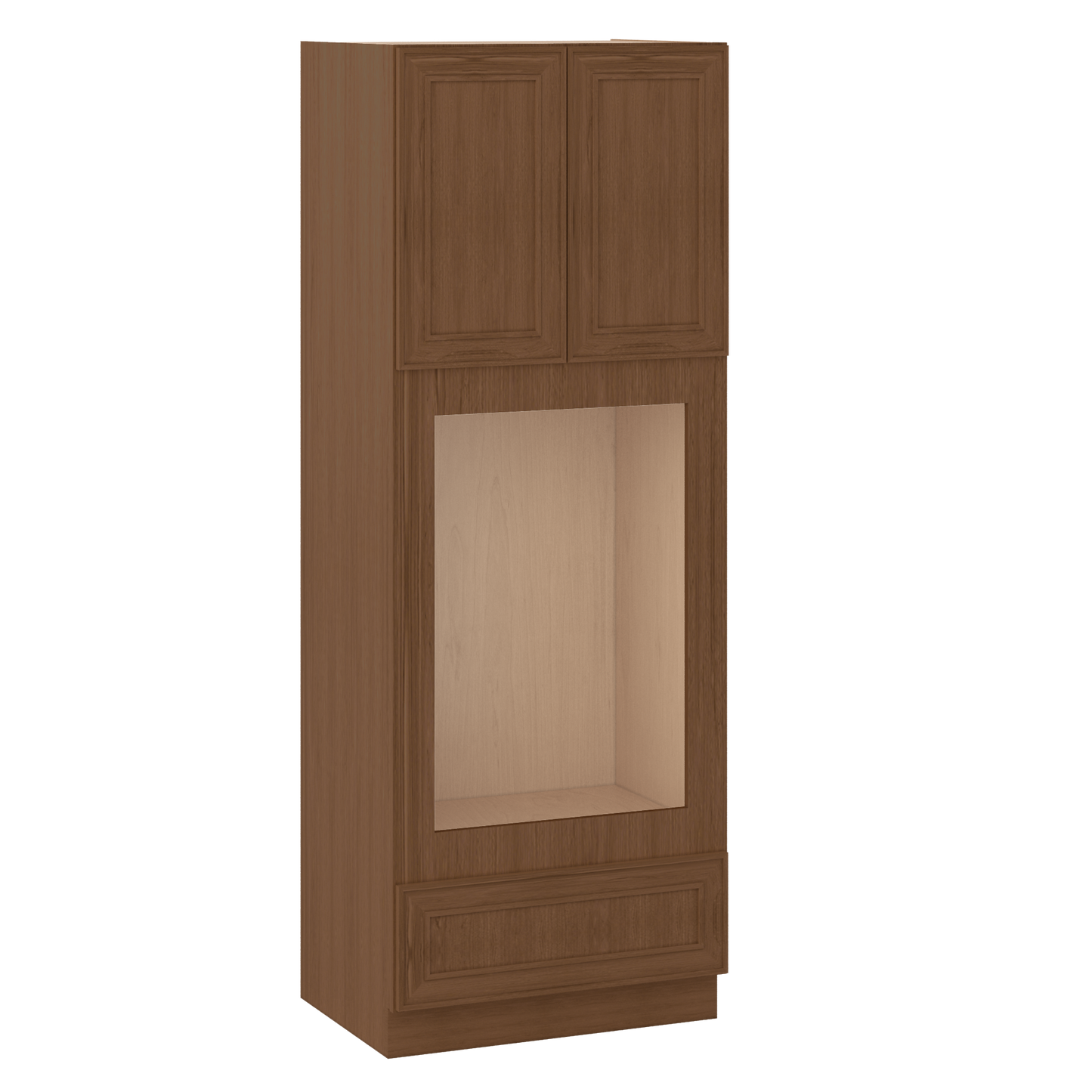

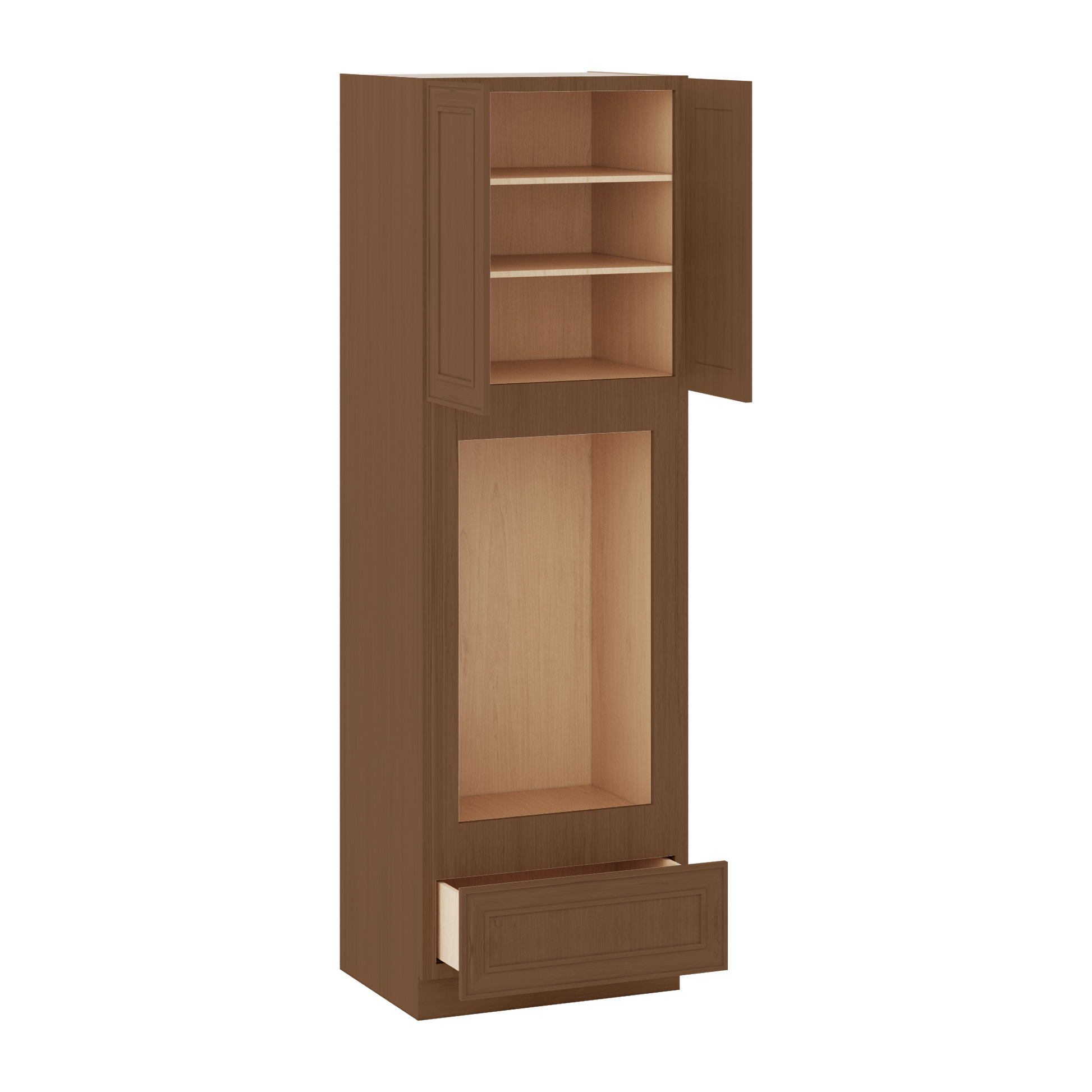

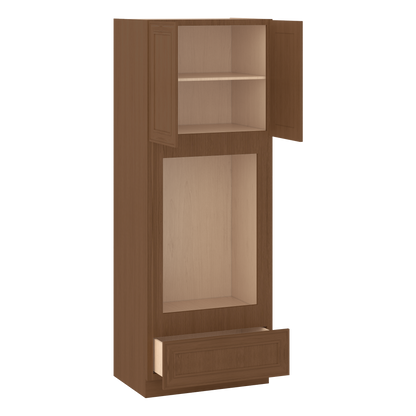

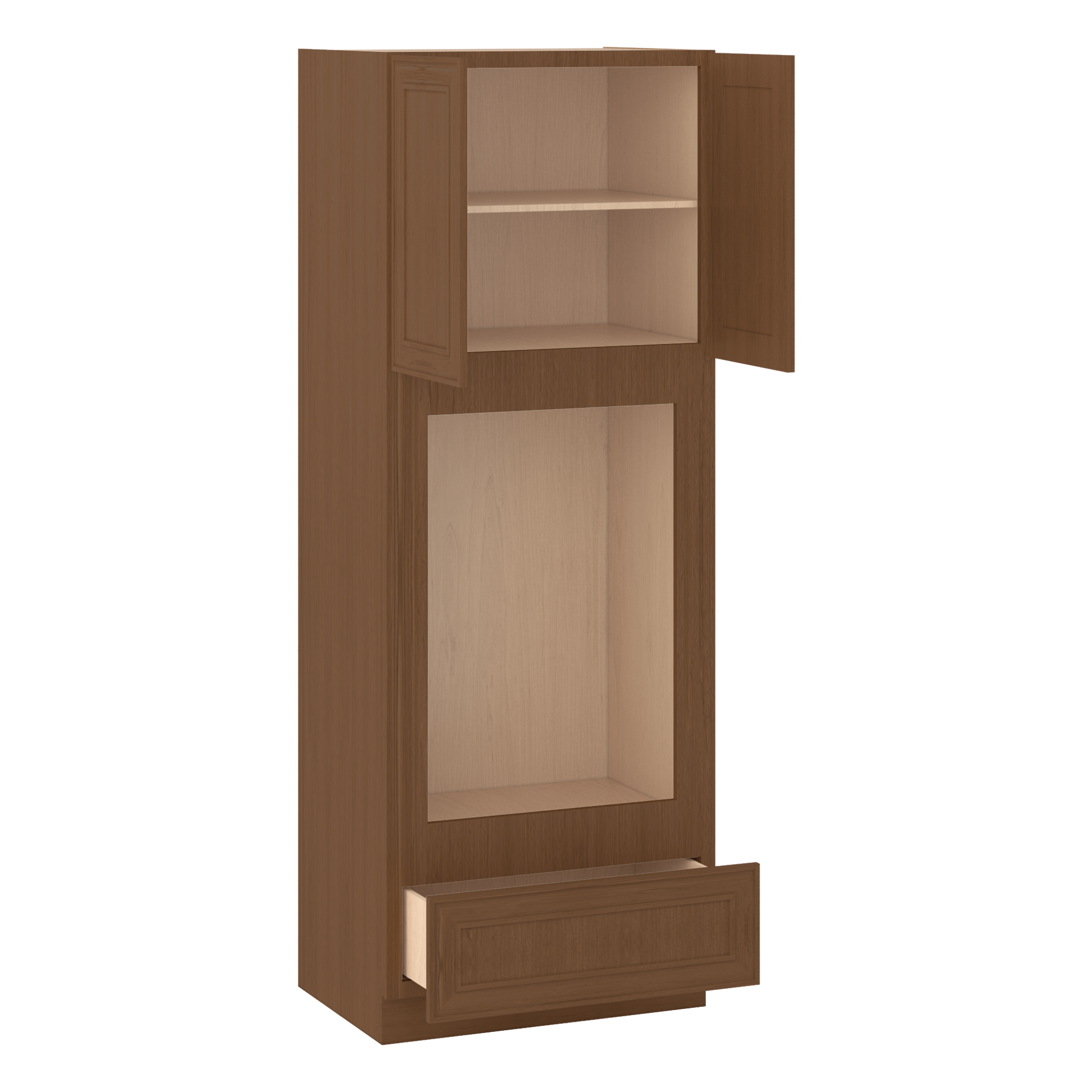

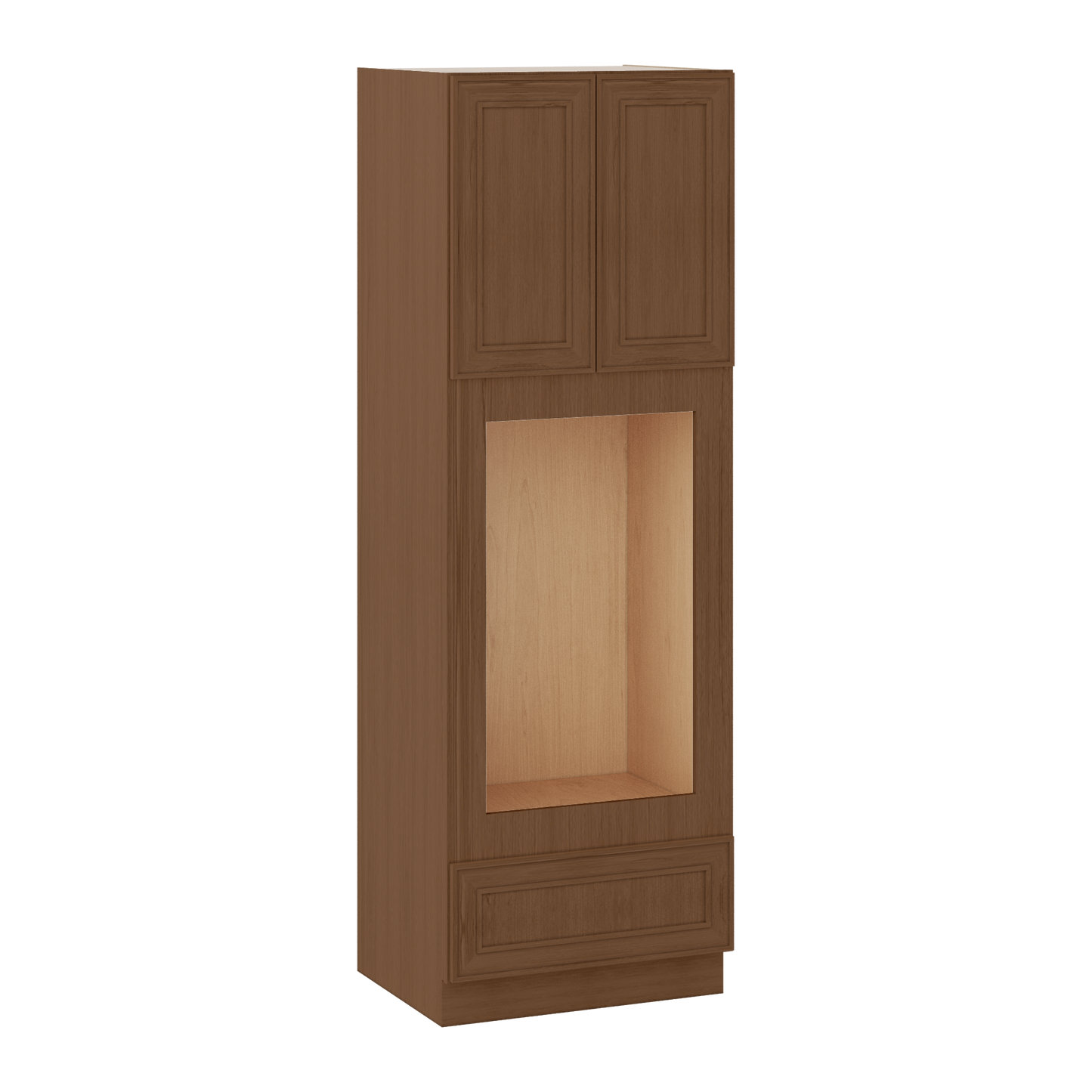

Available in 30" and 33" widths, three heights—84", 90", and 96"—and a standard 24" depth, these ready-to-assemble (RTA) cabinets are sized to accept standard wall oven cutouts. The front carries two doors on European-style soft-close hinges above the oven opening and a functional drawer below on full-extension, soft-close undermount glides. Doors and drawer front feature the line's full 1-1/4" overlay—sitting wider and taller than the face-frame opening with only 1/4" of face frame exposed left and right for a substantial, seamless front. Wall oven cabinets do not include interior shelving, leaving the opening clear for your oven cutout.

Constructed with plywood and solid oak, these cabinets are built to last. The 1/2" 7-ply panels and 3/4" solid oak face frame front provide strength and durability, while the Mocha stain adds a sophisticated, modern touch. The interior is finished with polyurethane natural birch plywood for a polished look, and the rear panel features a Grade A finished polyurethane natural birch interior with an engineered plywood backside for added rigidity.

Doors operate on DTC European-style soft-close hinges, and the drawer runs on DTC full-extension, soft-close undermount glides for smooth, quiet operation every time. The drawer is constructed with solid birch wood and dovetail joinery; we recommend adding a small amount of glue when assembling. All cabinet hardware carries a lifetime warranty.

These Semi Custom Grade A kitchen cabinets are suitable for both residential new construction and remodeling projects, and all hardware needed for assembly is included (handles not included). The cabinet box interior is natural birch with a clear UV-protectant finish. All exposed sides require color-matched skin panels to keep every visible surface consistent. California CARB2 compliant.

Shipping note: Wall oven and pantry cabinets require a $2,500 minimum purchase to qualify for FREE shipping. Below that, shipping is billed at actual carrier cost with no markup—call for a quote.

Features

• Sized to accept standard single or double wall oven cutouts
• Two doors above the oven opening on DTC soft-close hinges
• Functional drawer below on DTC full-extension, soft-close undermount glides
• Drawer built with solid birch and dovetail joinery
• 1-1/4" overlay solid oak doors and drawer front, only 1/4" of face frame exposed left and right
• 100% oak hardwood face frame and doors in warm Mocha stain, sealed with clear UV protectant
• No interior shelving—opening left clear for your oven
• 1/2" 7-ply plywood box; natural birch interior with clear UV-protectant finish
• Grade A finished natural birch rear panel with engineered plywood backside for rigidity
• All cabinet hardware carries a lifetime warranty
• Skin panels required for all exposed sides
• California CARB2 compliant
• All assembly hardware included · handles not included

Specifications
Line: Mocha Elegant Craftsman Shaker (Mocha)
Color / Finish: Mocha stain + clear UV protectant
Style: 1-1/4" Overlay · Shaker
Type: Wall Oven Cabinet (single or double oven)
Available Widths: 30", 33"
Available Heights: 84", 90", 96"
Depth: 24"
Configuration: Two doors above oven opening, one drawer below
Face Frame Reveal: 1/4" exposed left and right of doors
Hinges: DTC soft-close, adjustable, lifetime warranty
Drawer Glides: DTC full-extension, soft-close undermount
Drawer: Solid birch, dovetail joinery
Shelving: None (oven opening left clear)
Box: 1/2" 7-ply plywood, natural birch interior
Face Frame & Doors: 100% oak hardwood, Mocha stain
Exposed Sides: Skin panels required
Compliance: California CARB2
Assembly: RTA — hardware included
Grade: Semi Custom Grade A
Handles: Not included

Construction & Finish — Mocha Elegant Craftsman Shaker

The face frame and the door and drawer frames are solid oak milled in the Elegant Craftsman profile, with 1/4" plywood center panels. The medium umber Mocha stain sits under a UV Clear Matte Finish, deepening the oak grain with a rich, warm tone. Cabinets up to 21" wide have a single door (pantries: two — one top, one bottom); 24"–42" widths have double doors (pantries: four — two top, two bottom).

The cabinet box is birch plywood finished to match the line. For a perfect exterior color and grain match, oak skin panels are required on all exposed sides; toe kick skin matches the exterior. Crown and trim pieces are solid oak.

Drawer boxes are solid wood with 1/2" thick sides, dovetail joints, and a 1/2" plywood bottom set in a dado cut, riding on DTC D-Motion face-frame full-extension soft-close undermount slides with Peg Lock. Doors swing on European-style hidden soft-close hinges. Cabinet hardware carries a lifetime warranty.

In-Stock Contractor Grade A ready to assemble (RTA) Craftsman kitchen cabinets for residential new construction and remodeling. All assembly hardware included; cabinet handles not included.

This is a stock cabinet, sold in the size options shown on this page. Check its dimensions under Construction.

Before ordering, confirm your finished opening, appliance clearances, and any exposed cabinet sides that need matching skin panels, toe kick, or trim.

Ready for pickup at our Carson warehouse in 3 days.

In stock and ready to ship. Delivery is by RTA Wholesalers company vehicle or LTL freight carrier, or you can pick up at our Carson, CA warehouse. Estimated delivery and shipping details are managed through your customer portal.

Shipping is free. Pantry cabinets and large skin panels ship on full-size pallets, so orders that include them need a $2,500 minimum to qualify for free shipping.

Returns: stock cabinets can be returned within 30 days, unassembled and in the original box. There is no restocking fee; the customer pays return shipping.

Assembly details are listed under Construction. Plan assembly and installation after delivery. Lifetime hardware warranty.

What sizes is this wall cabinet available in?

This wall cabinet comes in 6 sizes: 30" x 84" OVEN CABINET - 27" x 51-1/2" Opening, 30" x 90" OVEN CABINET - 27" x 51-1/2" Opening, 30" x 96" OVEN CABINET - 27" x 51-1/2" Opening, 33" x 84" OVEN CABINET - 28-1/2" x 51-1/2" Opening, 33" x 90" OVEN CABINET - 28-1/2" x 51-1/2" Opening and 33" x 96" OVEN CABINET - 28-1/2" x 51-1/2" Opening. Pick the size in the selector on this page; each size is its own SKU at its own price.

Can I order this cabinet in a custom size or color?

No. This is a stock cabinet, sold in the sizes and finish shown on this page.

Can I return this cabinet?

Yes, within 30 days, unassembled and in the original box. There is no restocking fee; the customer pays return shipping.

What should I confirm before ordering?

Confirm the cabinet width, height, and depth, your finished opening, appliance clearances, and any exposed sides that need matching panels or trim.
