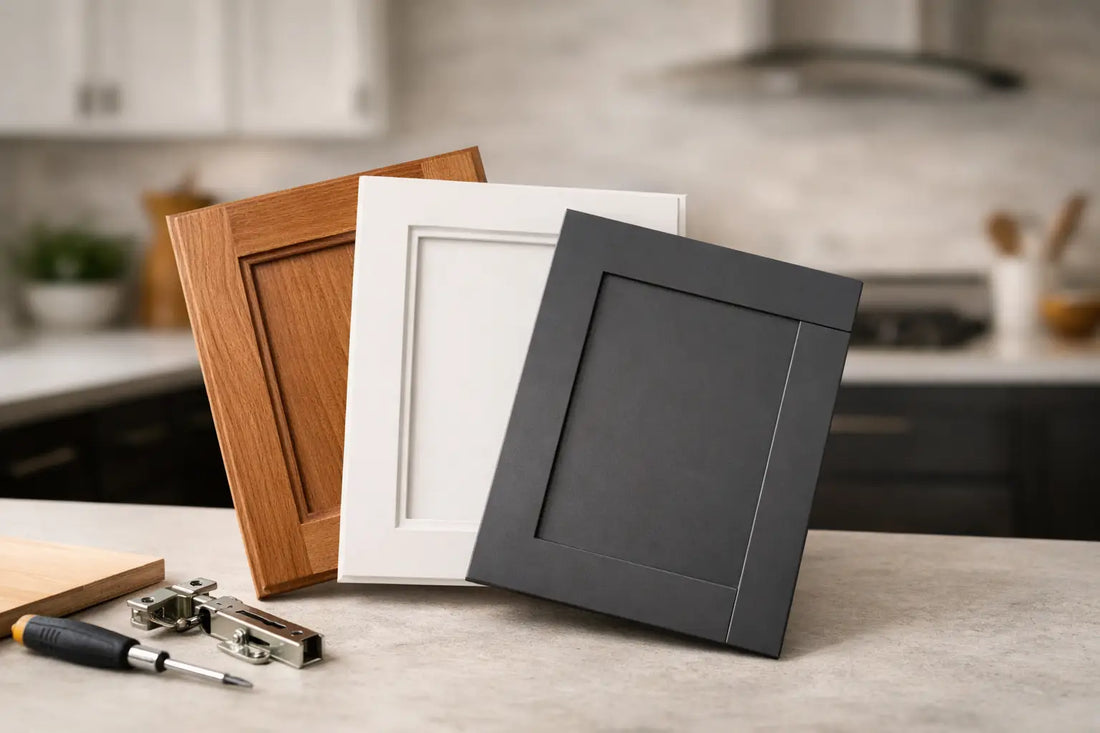

A Practical Guide to Cabinet Door Overlays

A cabinet door can change the entire read of a kitchen before anyone notices the color, hardware, or countertop. The amount of frame visible around each door affects whether cabinetry feels traditional, streamlined, substantial, or furniture-like. This guide to cabinet door overlays explains how overlay styles work, what they mean for your layout, and how to specify cabinets that fit both your design direction and installation requirements.

What Is a Cabinet Door Overlay?

Overlay is the amount a cabinet door overlaps the cabinet face frame or cabinet opening when the door is closed. It is a construction detail, but it has a major visual effect. More overlay means less visible frame between doors and drawers. Less overlay leaves more face frame exposed.

Cabinet overlays are often discussed alongside three common door styles: partial overlay, full overlay, and inset. While the terminology is familiar, exact dimensions can vary by cabinet line. A door described as full overlay in one collection may not use the same reveal as a door from another manufacturer. Always review the cabinet specifications rather than assuming all “full overlay” styles are identical.

The reveal is the intentionally visible gap between doors, drawer fronts, and cabinet frames. That small space allows doors to operate without rubbing, accommodates normal seasonal movement in wood components, and gives the cabinet run its finished rhythm.

Guide to Cabinet Door Overlays: The Main Styles

Partial overlay cabinets

Partial overlay doors cover only part of the cabinet face frame, leaving a wider strip of frame visible around the doors and drawer fronts. This is a familiar look in traditional kitchens, utility spaces, and value-oriented cabinet lines.

A common partial-overlay configuration uses approximately a 1/2-inch overlay, though measurements depend on the cabinet construction and hinge system. Because more face frame remains visible, partial overlay cabinets create stronger horizontal and vertical lines across a cabinet run. They can also be forgiving when working with older walls that are not perfectly straight, although proper installation still matters.

The trade-off is appearance. A partial overlay can look busier than a larger-overlay style, especially in a kitchen with many narrow drawers, doors, and wall cabinets. For a remodel aiming for a cleaner shaker kitchen, many buyers prefer a larger overlay or inset design.

Full overlay cabinets

Full overlay doors cover most of the face frame, leaving narrow, consistent reveals between adjoining doors and drawers. The result is a more continuous cabinet front with less exposed framing. Full overlay is a popular choice for transitional, contemporary, and updated shaker kitchens because it gives cabinetry a clean, substantial look without requiring the precision of true inset construction.

The term “full overlay” does not mean there is no visible frame or no gap between doors. Doors still need clearance to open properly. On framed cabinets, a narrow portion of the face frame may remain visible. On frameless cabinets, the door typically covers more of the cabinet box edge, but reveals are still necessary.

Full overlay cabinets can make a compact kitchen feel more polished because the cabinet fronts read as larger, more unified surfaces. They also place a premium on accurate installation. Uneven spacing is easier to see when reveals are tight, so cabinet boxes must be leveled, plumbed, secured, and adjusted carefully.

1-1/4-inch overlay cabinets

A 1-1/4-inch overlay is a specific, larger-overlay cabinet style commonly used to create a refined, furniture-grade appearance. The doors and drawer fronts cover more of the face frame than a traditional partial-overlay door, while still retaining the practical benefits of face-frame construction.

This style is a strong fit for homeowners and designers who want clean lines but do not want the higher cost, tighter tolerances, and installation demands associated with inset cabinetry. In shaker doors, a 1-1/4-inch overlay can make the rail-and-stile profile feel more intentional and reduce the visual interruption of exposed frame lines.

When comparing cabinet collections, confirm whether the stated overlay applies to doors, drawer fronts, or both. Also ask how the collection handles paired doors, end panels, and cabinet runs next to walls. Those details determine whether the finished kitchen has consistent spacing from one elevation to the next.

Inset cabinets

Inset doors sit inside the cabinet face-frame opening rather than covering it. The face frame remains fully visible around each door and drawer front, with a narrow, even reveal on all sides. This is one of the most precise and classic cabinet styles available.

Inset cabinetry offers a tailored look that works particularly well in traditional, historic, transitional, and high-end custom kitchens. It can highlight painted finishes, natural wood grain, and carefully selected hardware. But inset doors require exact manufacturing and careful installation because the door must sit squarely within the opening. A cabinet that is slightly out of level can produce inconsistent gaps or door interference.

Inset is usually priced above overlay options due to the additional precision involved. It is an excellent choice when the architecture and budget support it, but a larger-overlay shaker cabinet can deliver a similarly elevated result at a more accessible project cost.

Why Overlay Changes Your Kitchen Design

Overlay affects more than the door front. It influences your choice of hinges, handles, fillers, decorative panels, and appliance clearances. A kitchen plan should account for these details before cabinets are ordered.

On a large island, for example, full overlay or 1-1/4-inch overlay doors can create a broad, uninterrupted furniture look. In a narrow galley kitchen, the same style may make the room feel less segmented and visually calmer. Partial overlay can be the right choice when you prefer stronger frame definition or are matching an existing cabinet style elsewhere in the home.

Color also plays a role. Snow white, vintage white, cream, and sage cabinets often emphasize shadows and reveals, making door spacing more noticeable. Darker finishes such as black, blue, or tuscan gray can make a larger overlay feel especially crisp and tailored. With natural oak or birch, exposed face-frame details may become part of the visual appeal rather than something to minimize.

Measure the Cabinet, Not Just the Door

Door overlay is not something to guess from a photo or measure from an existing door alone. The correct specification depends on cabinet construction, face-frame width, hinge type, and the location of the door within the cabinet run.

For a replacement door project, measure the cabinet opening, face-frame rails and stiles, existing door dimensions, and the distance between neighboring doors or drawers. Note whether the door is a single door, one of a pair, or next to a wall, panel, or appliance. A door that works at the center of a cabinet run may require a different hinge or overlay at the end of that run.

For a complete kitchen purchase, start with the floor plan and cabinet layout. Cabinet widths, blind-corner conditions, refrigerator panels, filler strips, and end panels should be planned as a system. This avoids a common problem: selecting a door style first, then discovering that adjacent doors cannot open fully because a handle contacts a wall or appliance.

Hinges and Hardware Must Match the Overlay

Concealed European-style hinges are typically selected based on the overlay requirement. A hinge designed for a partial-overlay door will not position a full-overlay door correctly. Inset doors require inset-specific hinge configurations. The mounting plate, cabinet frame, and hinge cup location all matter.

Most quality cabinet hinges allow some adjustment after installation. Installers can fine-tune side-to-side spacing, door height, and depth to create even reveals. Adjustment is useful, but it cannot correct an improperly selected cabinet style or a cabinet box installed significantly out of square.

Hardware placement deserves the same attention. Larger-overlay doors may sit closer together, so pulls need enough clearance near adjacent doors, drawers, and walls. Before drilling every cabinet front, test one door and one drawer with the selected hardware. This is particularly valuable with long pulls, appliance pulls, and knob-and-pull combinations.

Choosing the Right Overlay for Your Project

Choose partial overlay when you want a traditional framed appearance, are matching existing cabinetry, or are prioritizing the most economical cabinet option. Choose full overlay when you want a cleaner, more current look with minimal visible framing. Consider a 1-1/4-inch overlay when you want a polished shaker kitchen that balances strong visual coverage with practical face-frame construction.

Choose inset when precise craftsmanship, visible face frames, and a furniture-style aesthetic are central to the design and the budget allows for it. Inset is not automatically “better.” It is simply a different construction and design choice with tighter tolerances.

For projects that include custom sizes, nonstandard walls, or multiple cabinet finishes, a professional layout is worth using before you place an order. RTA Wholesalers can help buyers evaluate inset and 1-1/4-inch overlay options through free 3D kitchen design, making it easier to see proportions, door spacing, and cabinet placement before cabinets arrive.

A well-chosen overlay gives every cabinet run a deliberate finish. Confirm the door style, hinge application, and reveal expectations early, then let the layout guide the final decision. That small specification will be visible every day the kitchen is in use.
