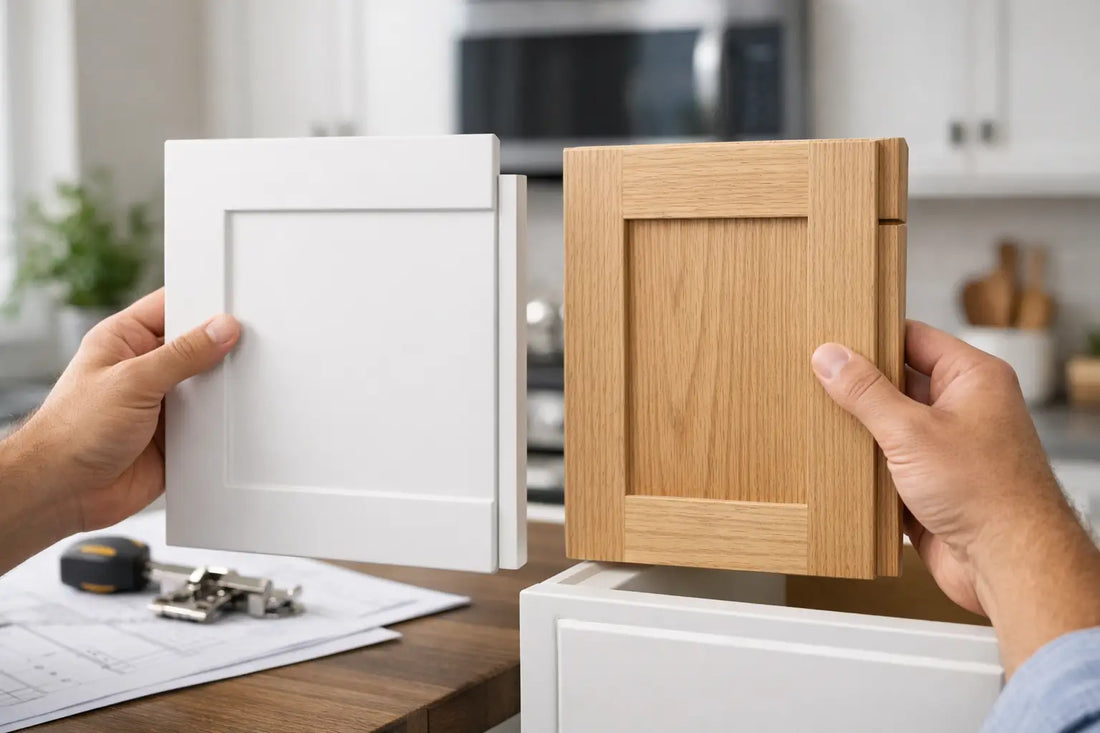

What Is Cabinet Overlay? A Practical Guide

A cabinet door can change the entire look of a kitchen before you ever choose a color, countertop, or handle. If you are asking, what is cabinet overlay, the answer is simple: overlay describes how much the cabinet door and drawer front cover the cabinet box or face frame when closed.

That detail affects the gaps between doors, the amount of frame you see, the hinge type required, and the finished style of the kitchen. It also affects how accurately cabinets must be specified and installed. For homeowners, builders, designers, and contractors, understanding overlay prevents one of the most common cabinet-ordering mistakes: selecting a door style that does not match the intended look or layout.

What Is Cabinet Overlay?

Cabinet overlay is the amount of the cabinet opening covered by a closed door or drawer front. In a traditional face-frame cabinet, the face frame is the solid wood frame at the front of the cabinet box. Depending on the door construction, that frame may remain highly visible, partly visible, or almost completely covered.

An overlay door sits on top of the cabinet frame rather than fitting inside the opening. The door is mounted with hinges and extends beyond the opening on one or more sides. For example, a door with a 1-1/4-inch overlay covers 1-1/4 inches of the face frame along the sides where it is hinged or where it meets the cabinet frame.

Overlay is not the same as door thickness. A 3/4-inch-thick shaker door can have a partial overlay, full overlay, or a larger 1-1/4-inch overlay. The overlay measurement refers to coverage, not the depth of the door.

The Main Cabinet Overlay Styles

The right overlay depends on the visual style you want, the cabinet line you select, and the level of precision your project requires. Most kitchen cabinet doors fall into three broad categories.

Partial Overlay Cabinets

Partial overlay doors cover only part of the face frame, leaving a wider portion of the frame visible between cabinet doors and drawer fronts. This is often called a standard overlay style.

The visible frame creates distinct lines around each cabinet opening. It can work well for traditional kitchens, utility rooms, rental properties, and budget-focused projects where straightforward construction and a familiar cabinet appearance are priorities.

Partial overlay cabinets generally use more visible face frame space, so the door and drawer fronts do not appear as continuous across a cabinet run. This is not a quality issue. It is a style and construction choice. However, buyers who want a cleaner, more furniture-like kitchen often prefer a larger overlay or inset construction instead.

Full Overlay Cabinets

Full overlay doors cover most of the face frame, leaving only narrow, consistent gaps between doors and drawer fronts. The result is a more streamlined and contemporary appearance, even when paired with a classic shaker door profile.

Full overlay is a popular choice for modern farmhouse, transitional, and clean-lined traditional kitchens. Because less frame is visible, the cabinet fronts have a more substantial, built-in look. It also puts more emphasis on the door color, wood grain, and hardware selection.

The term “full overlay” is not always a single universal measurement. Different manufacturers may use the term for slightly different door coverage. Always review the cabinet specifications instead of assuming that every full-overlay cabinet line uses the same reveal or hinge setup.

1-1/4-Inch Overlay Cabinets

A 1-1/4-inch overlay is a larger, more specific overlay dimension commonly used on face-frame cabinet construction. It creates a refined look with tight, controlled reveals while still using the durable structure of a face-frame cabinet box.

This style is especially appealing when you want the clean visual effect of premium cabinetry without moving to true inset doors. With 1-1/4-inch overlay construction, the face frame is mostly concealed, while narrow spaces remain between door and drawer fronts for operation and alignment.

RTA Wholesalers specializes in inset and 1-1/4-inch overlay cabinet styles, giving buyers a practical way to select a more tailored cabinet appearance while retaining the value and flexibility of ready-to-assemble or assembled cabinet options.

Overlay vs. Inset Cabinets

Overlay and inset doors are often compared because both can create an elevated kitchen appearance. Their construction is different.

An overlay door sits in front of the cabinet opening and overlaps the frame. An inset door fits inside the face frame opening, nearly flush with the front of the frame. The small gap around an inset door is intentional and necessary for the door to open and close properly.

Inset cabinetry has a precise, custom furniture look. It requires careful manufacturing, level installation, and consistent spacing. Seasonal wood movement and uneven walls can also be more noticeable with inset doors, which is why installation quality matters greatly.

Overlay cabinets are generally more forgiving during installation. They can still deliver a polished, high-end result, particularly with wide overlay doors, shaker styling, solid birch fronts, and quality concealed hinges. For many projects, overlay cabinetry provides the best balance of appearance, cost control, and installation practicality.

Why Overlay Matters When Planning a Kitchen

Overlay affects more than the cabinet door appearance. It influences measurements, appliance spacing, hardware placement, and how finished the entire room looks.

When doors have a larger overlay, there is less visible frame between adjacent cabinets. That can make a long wall of base cabinets look more continuous. In smaller kitchens, this can help the cabinetry feel less busy. In larger kitchens, it supports a more cohesive, built-in look across islands, pantry cabinets, and appliance surrounds.

Door clearance also matters. A large overlay door may project farther over adjacent face-frame areas, so cabinet design must account for corners, pull-out accessories, walls, and decorative end panels. Lazy Susan doors, blind corner cabinets, refrigerator panels, and tall pantry units all require particular attention during layout planning.

Drawer fronts need the same consideration. On a well-designed overlay cabinet system, drawer and door gaps are consistent across the kitchen. Uneven gaps may indicate an installation issue, an out-of-level floor, or a cabinet run that needs adjustment - not necessarily a problem with the cabinet construction itself.

How to Read Overlay Measurements

Overlay is typically measured from the edge of the cabinet opening or face frame to the edge of the door. A larger number means the door covers more of the cabinet frame.

The measurement can vary depending on where the door sits. A single door next to an outside cabinet edge may have a different overlay than two doors meeting at the center of a double-door cabinet. The center gap, often called the reveal, must remain wide enough for both doors to operate without rubbing.

Hinges are selected to match the overlay. Concealed European-style hinges are commonly available in configurations designed for partial overlay, full overlay, and inset doors. Using the wrong hinge can cause doors to bind, sit too far apart, or fail to close correctly.

For that reason, do not mix replacement doors, hinges, and cabinet boxes from unrelated lines without verifying specifications. A door that looks similar can still have a different overlay requirement, drilling pattern, or hinge cup location.

Choosing the Right Overlay for Your Project

Choose partial overlay when the project calls for a traditional visible-frame look, simple cabinet construction, or the lowest upfront cost. It is a practical option, but it creates a more segmented cabinet face.

Choose full overlay when you want a cleaner presentation with minimal visible face frame. This option works particularly well with white, gray, blue, sage, black, and natural wood shaker cabinets because the door finish becomes the dominant visual element.

Choose 1-1/4-inch overlay when you want a more substantial, upgraded appearance and tight-looking cabinet reveals without the added precision demands of inset construction. It is a strong choice for remodels and new construction where buyers want durable, design-conscious cabinetry at a more accessible price than fully custom work.

If you are undecided, a sample door is useful because it lets you evaluate the door profile, finish, and construction quality in person. A 3D kitchen design is equally valuable for seeing how cabinet spacing, appliance panels, islands, and tall cabinets will work as one complete layout.

Installation Details That Protect the Finished Look

Overlay doors are adjustable, but adjustment is not a substitute for proper cabinet installation. Cabinets should be leveled, shimmed, and securely fastened before final door alignment begins. Base cabinets must be level across the entire run, and wall cabinets must be installed on a straight, secure ledger line.

After the cabinet boxes are in place, hinges can be adjusted for height, side-to-side position, and depth. Small adjustments create even reveals between doors and drawer fronts. This is where careful installation makes an affordable cabinet line look professionally finished.

Avoid judging alignment before all cabinets are connected and secured. A single cabinet that is slightly out of plumb can affect neighboring doors, especially across long cabinet runs. Installers should also account for uneven walls rather than forcing cabinet boxes to follow a wall that is not straight.

The best overlay choice is the one that fits both your design target and your project conditions. A well-planned 1-1/4-inch overlay kitchen can deliver the crisp, tailored look many buyers want while keeping ordering, installation, and budgeting comfortably within reach.
