Base Cabinet 9", 12", 15", 18", 21" & Wider Manhattan Cream 1-1/4" Overlay Shaker Cabinet

Base Cabinet, 1-1/4" Overlay Shaker. 9" through 21" wide x 24" deep (24-3/4" including door).

The cabinets that carry your countertop and do most of the work in a kitchen. Ready to assemble, contractor grade A, in Manhattan Cream shaker — suitable for new construction and remodel alike.

Three configurations across the width range, so you can fill a run without forcing your layout around cabinet limitations.

One Full Height Door and Drawer/Door Combination

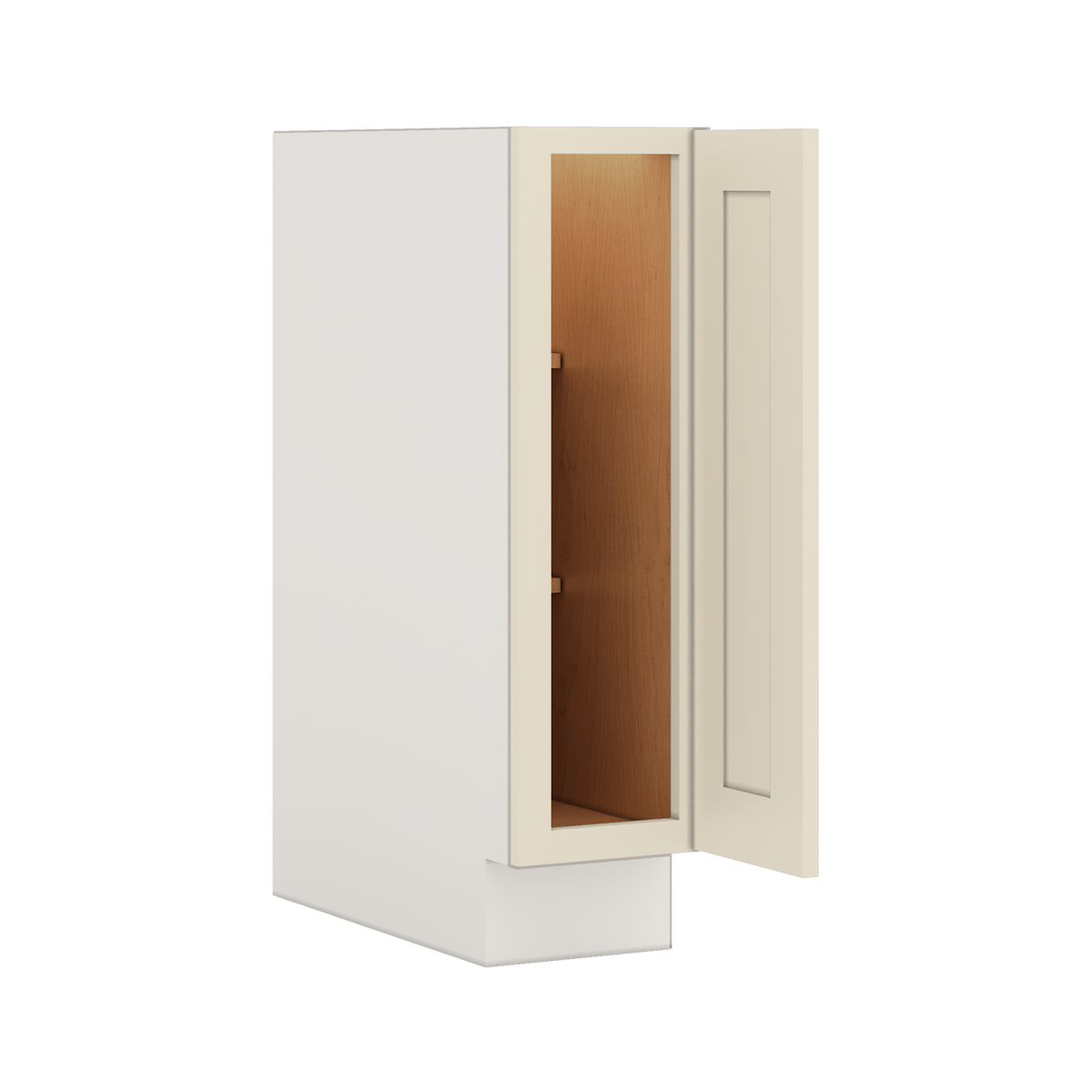

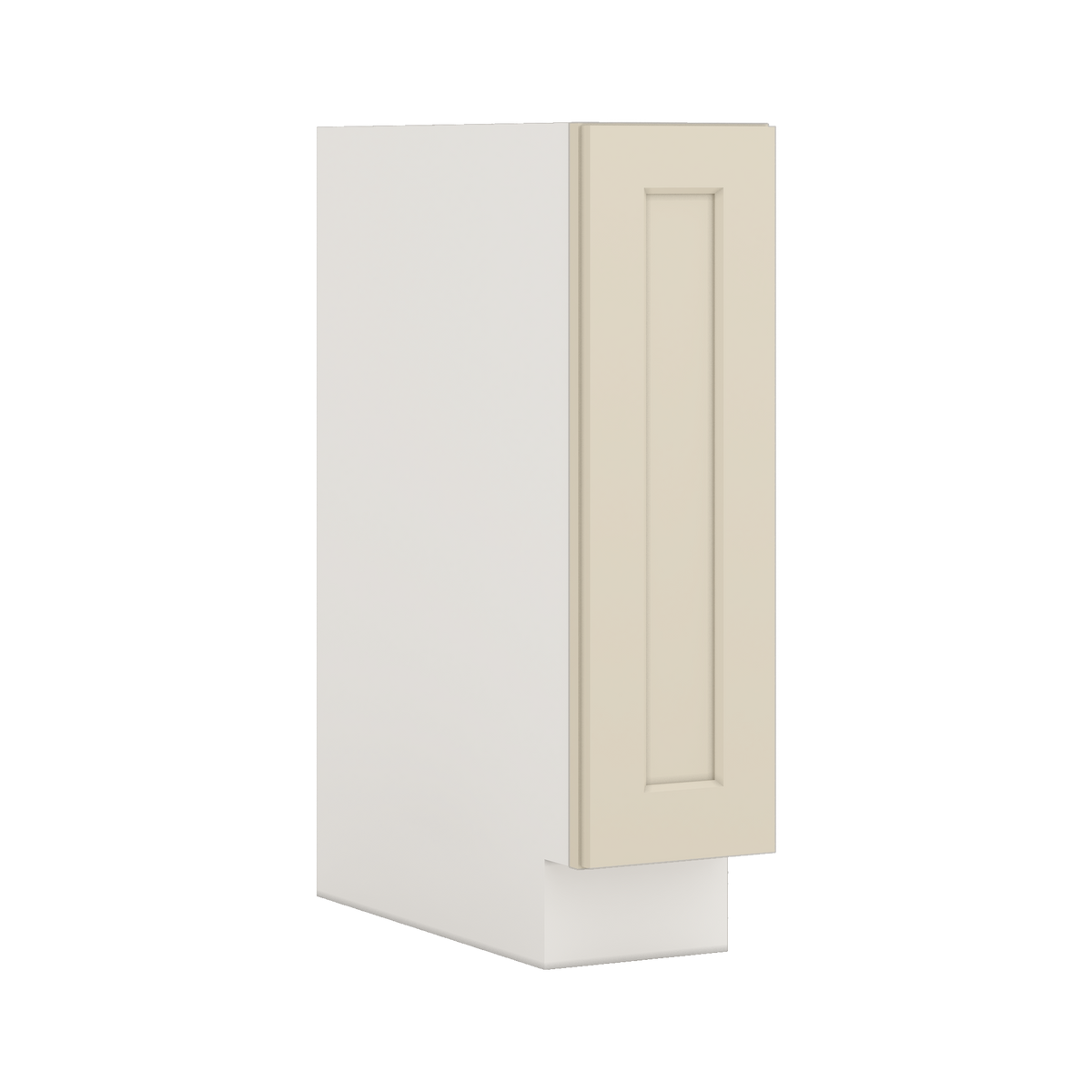

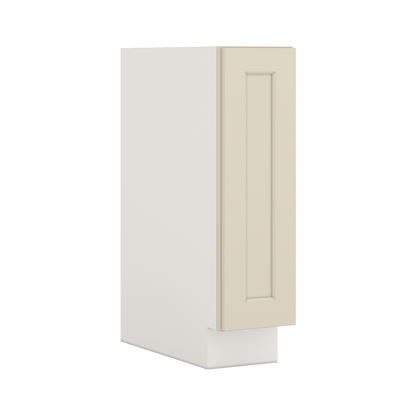

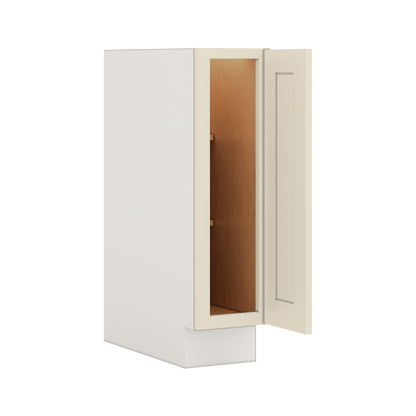

9" — single full height door. No drawer. One tall opening for trays, sheet pans, cutting boards, and the narrow things that have nowhere else to go. At 9" wide this closes the gap between an appliance and a wall without resorting to a dead filler panel — storage where most kitchens get a blank strip of painted wood.

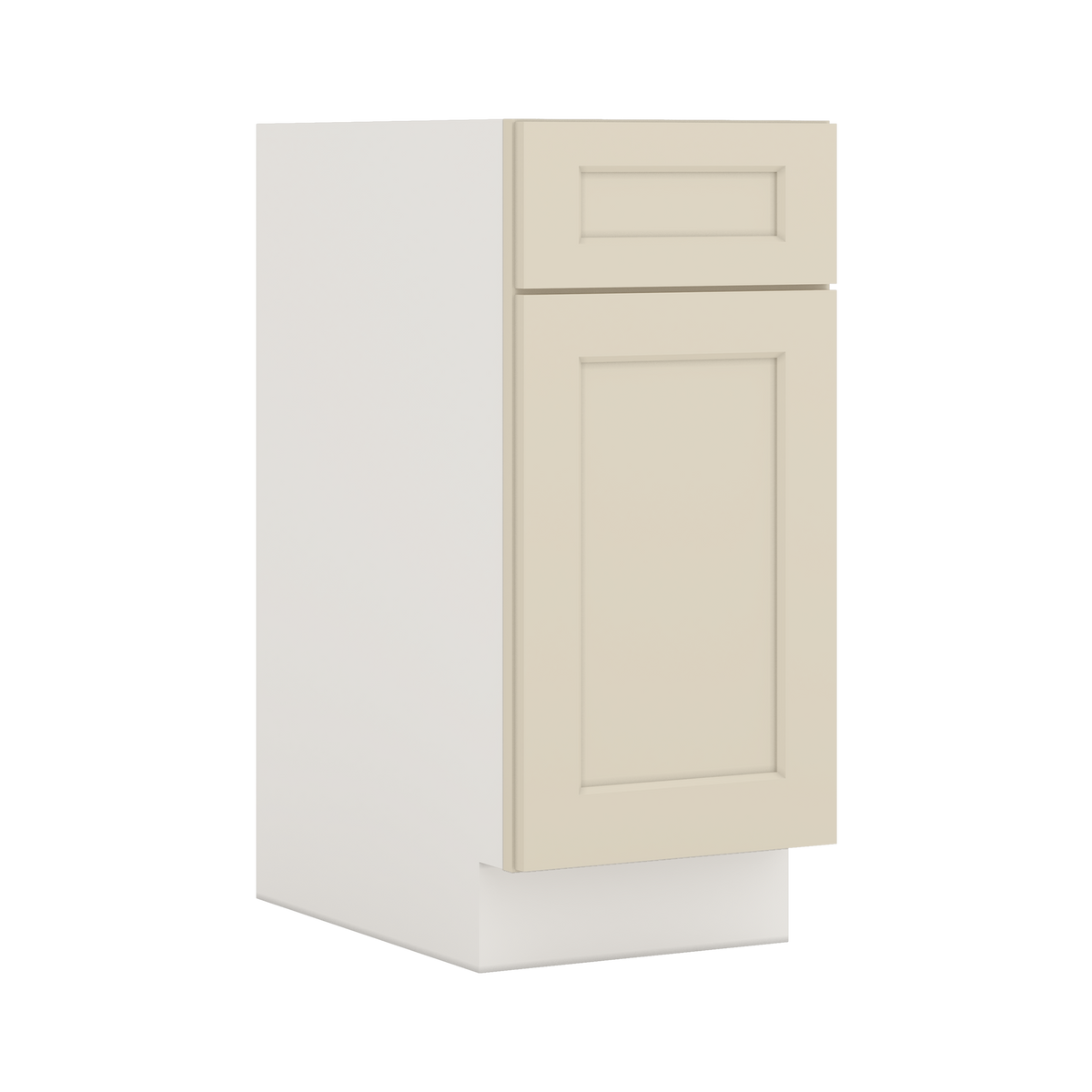

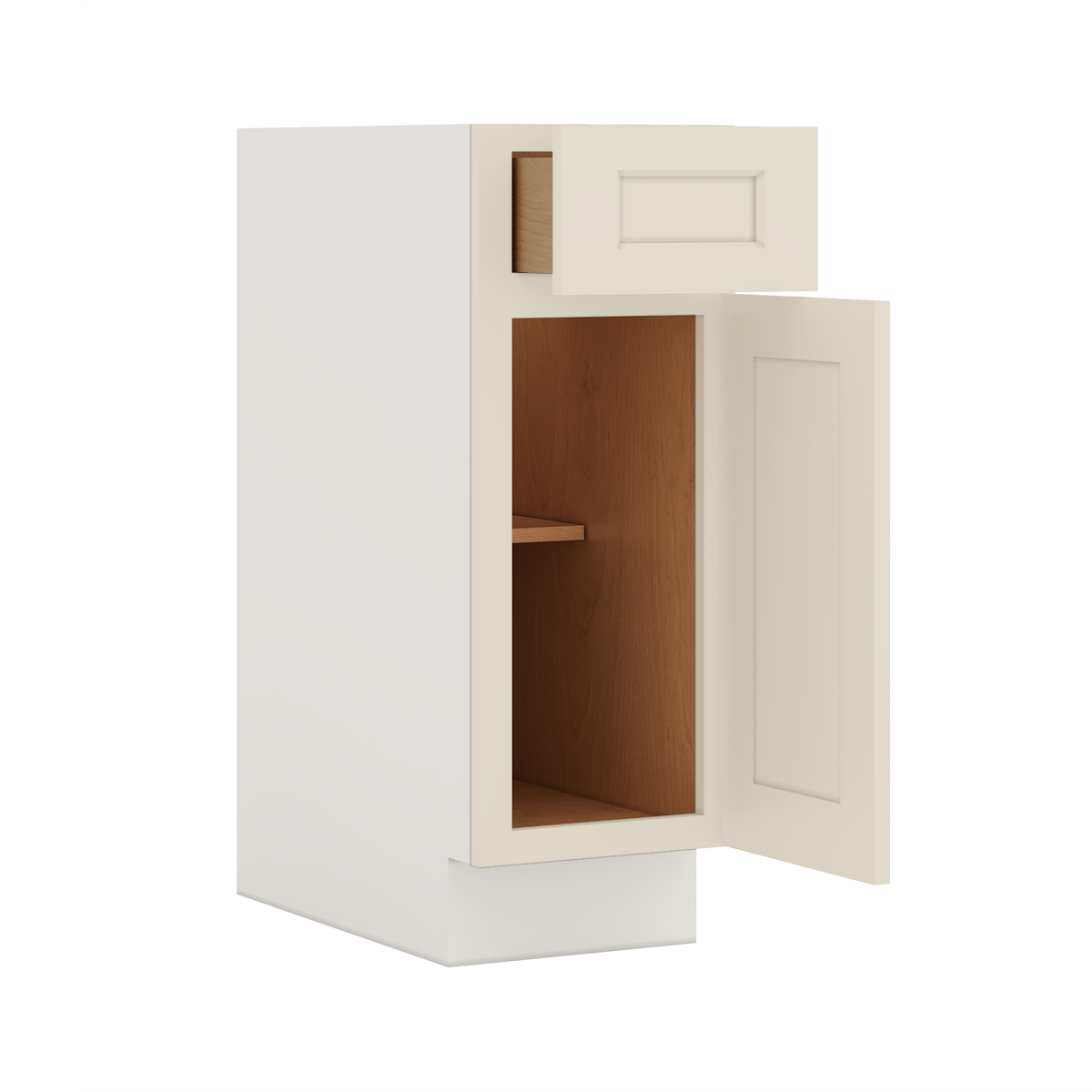

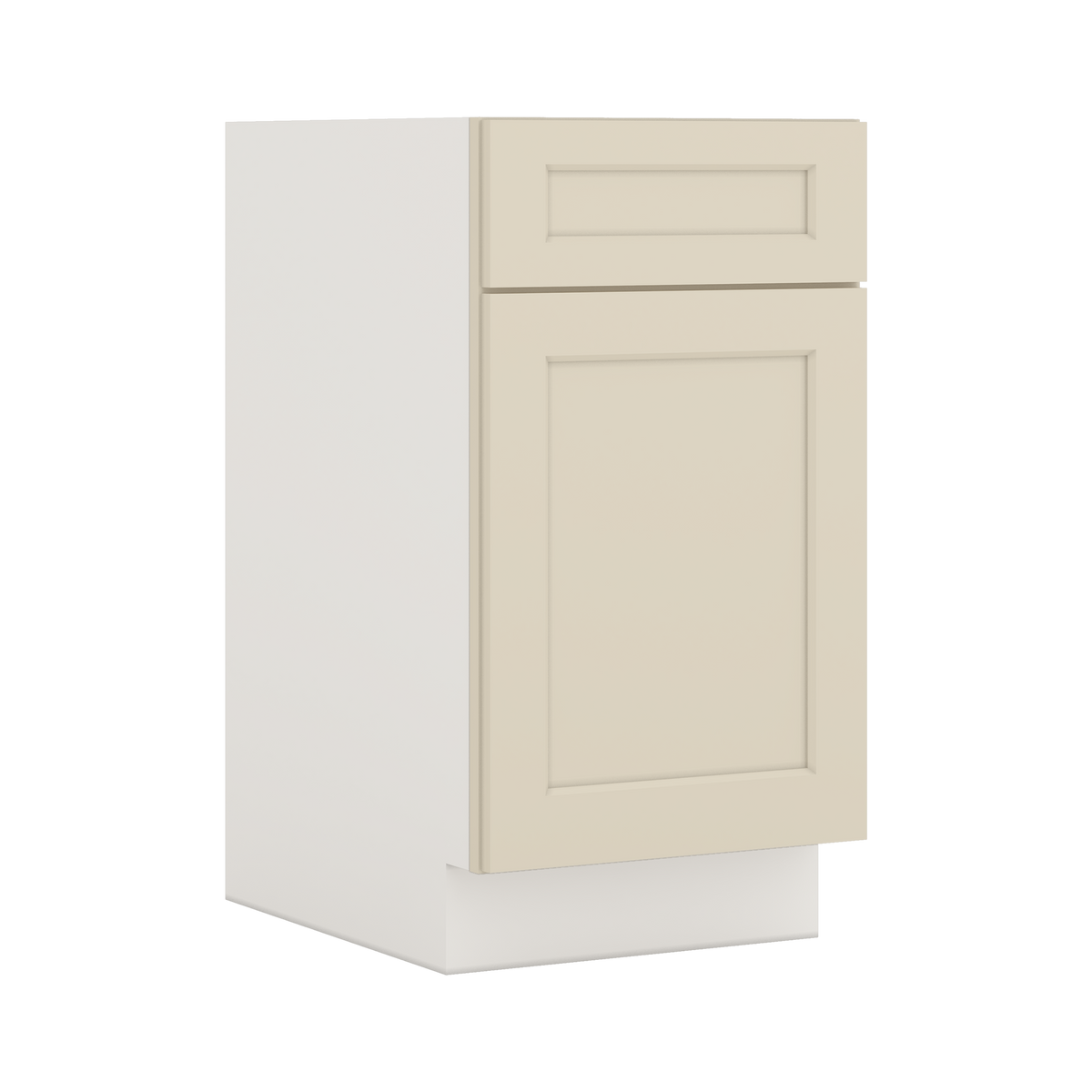

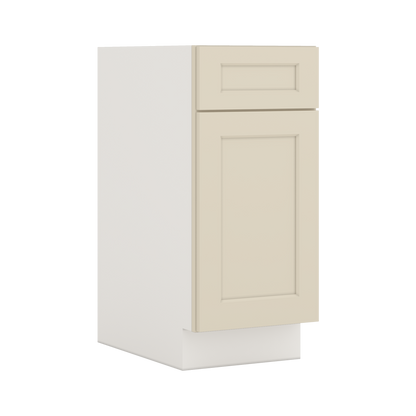

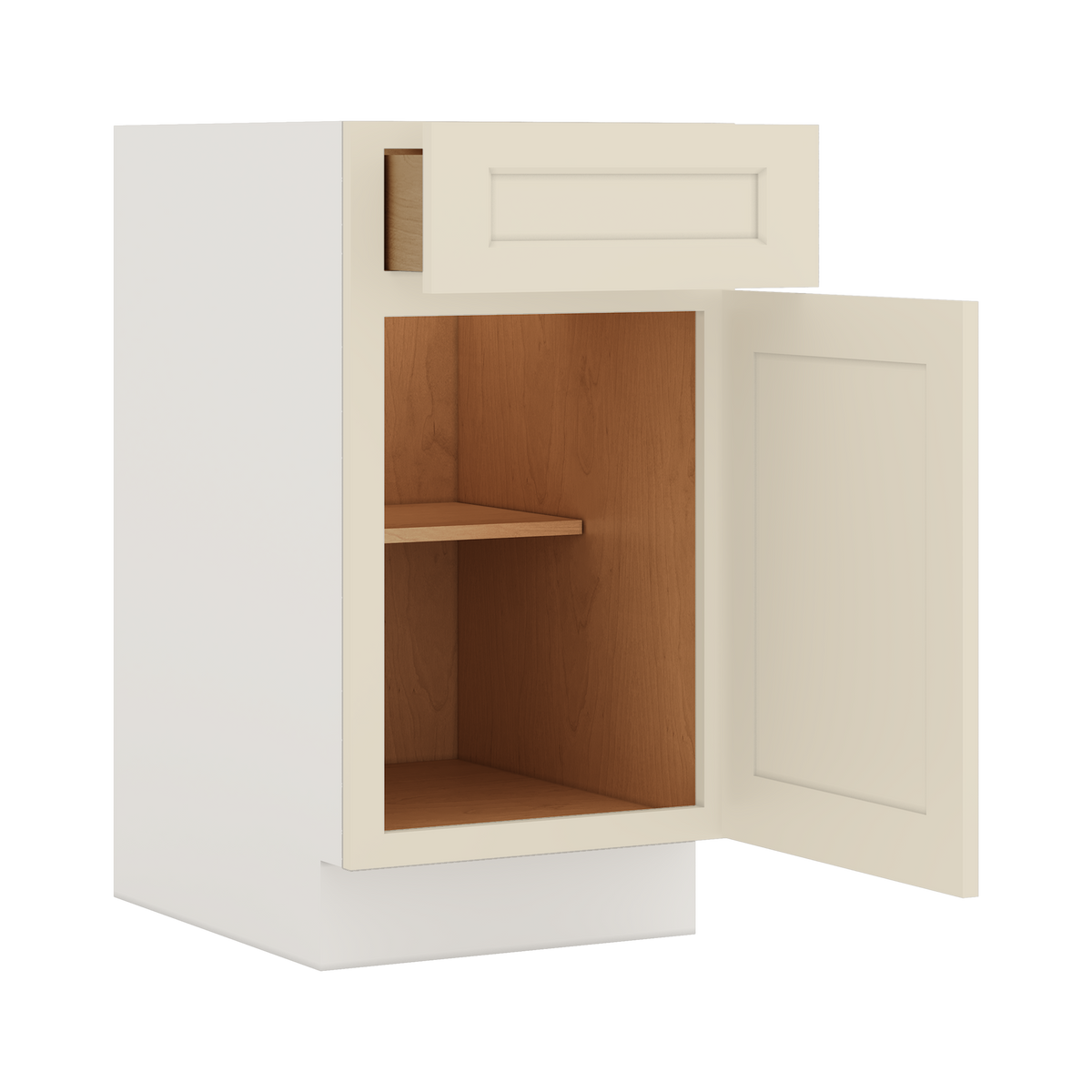

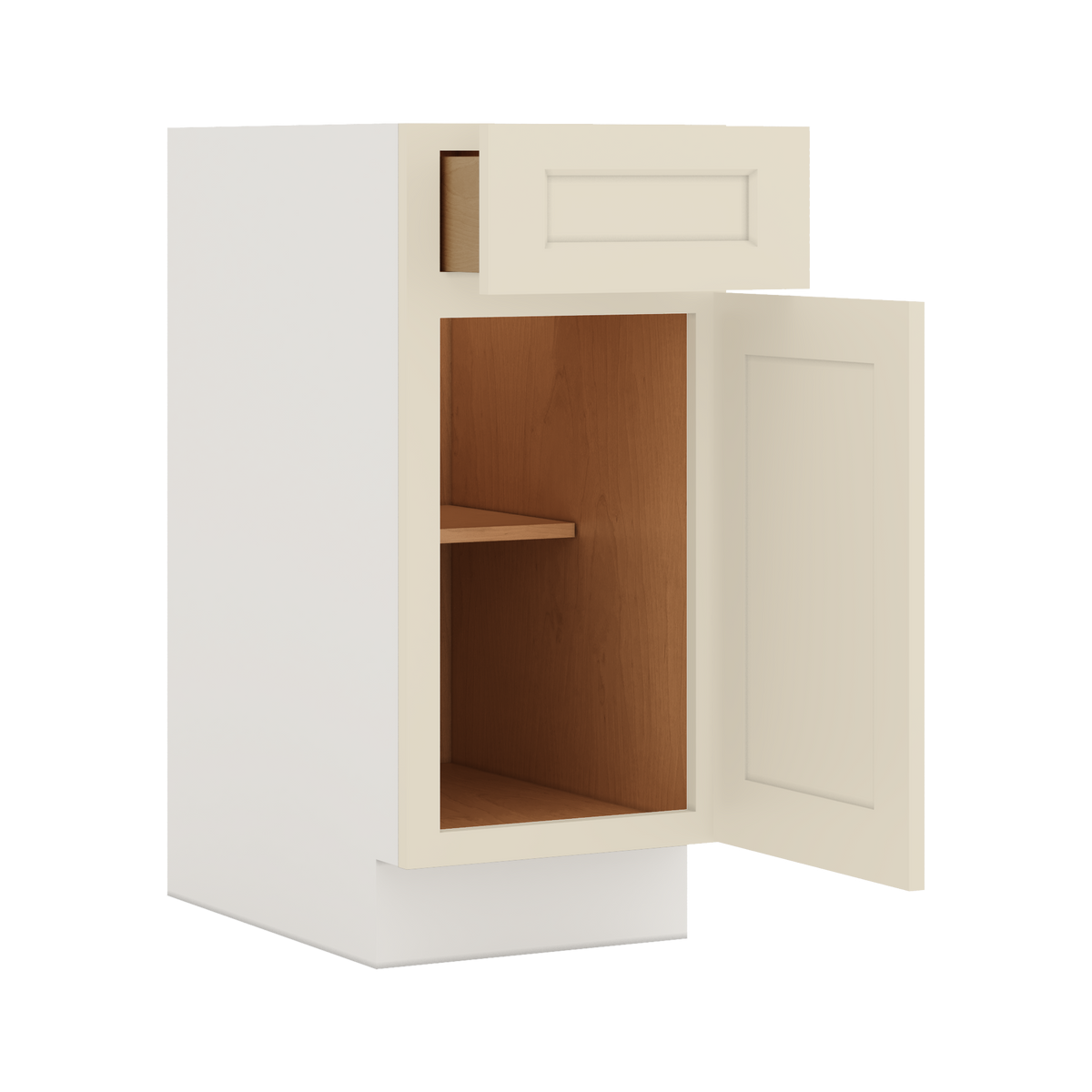

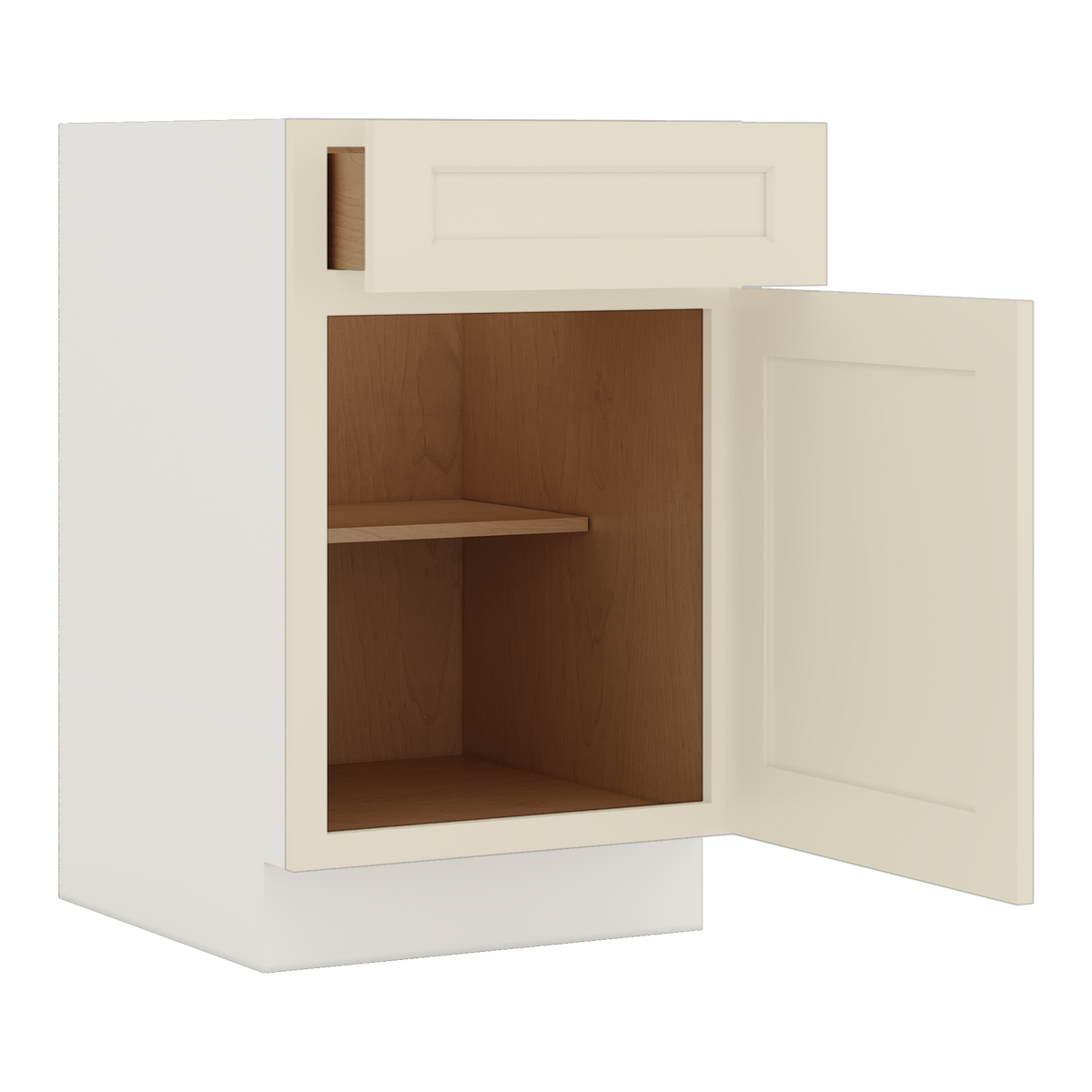

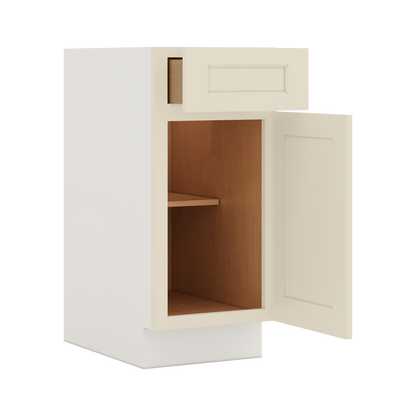

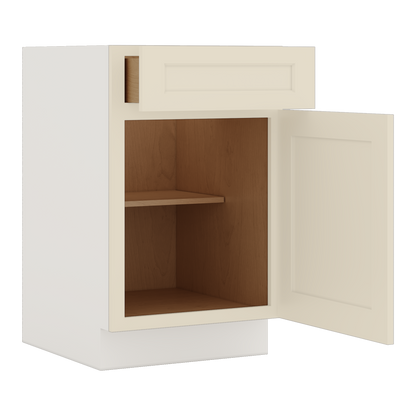

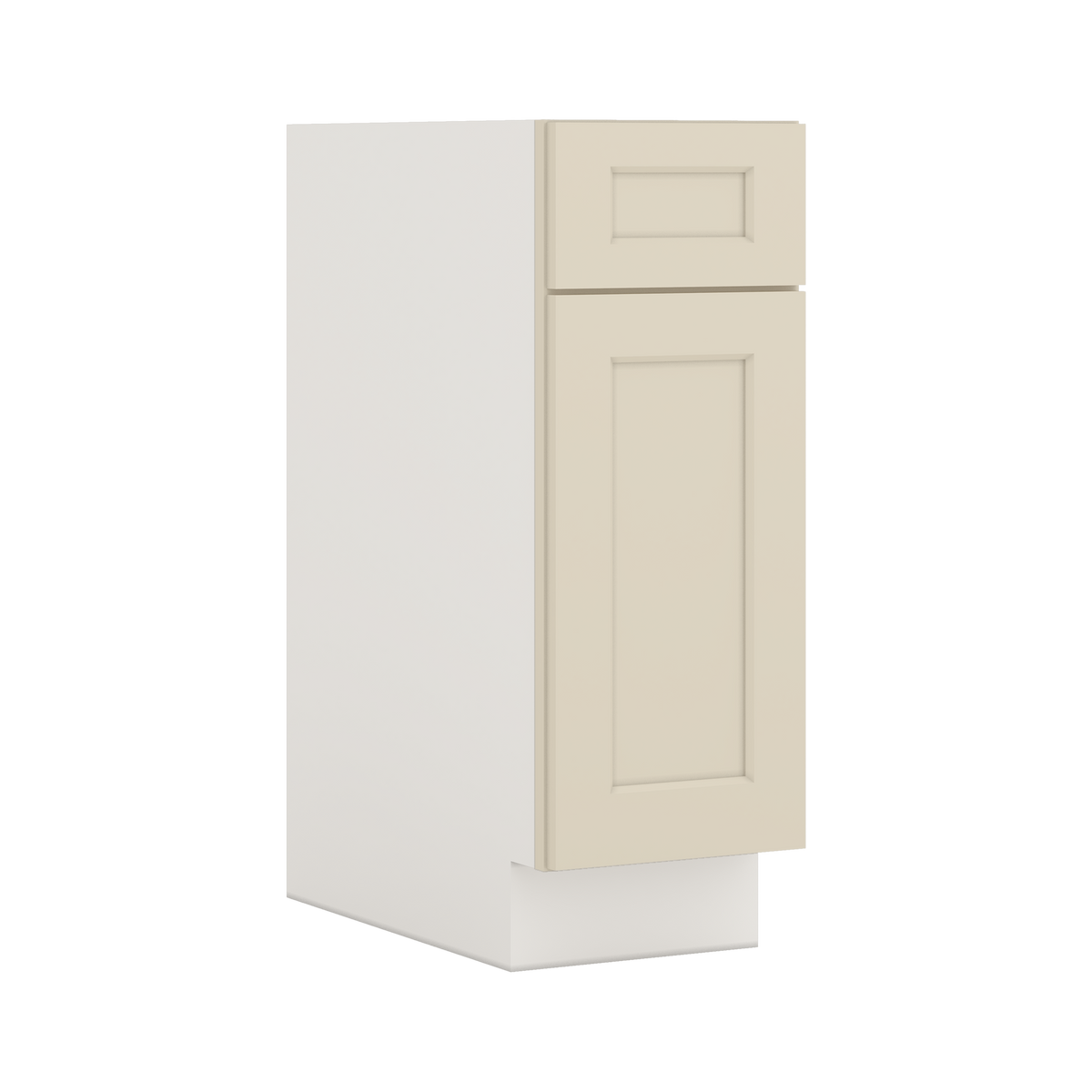

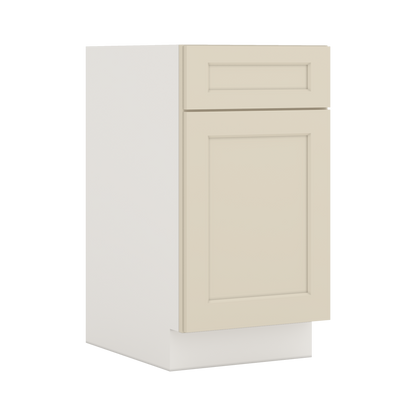

12", 15", 18", 21" — drawer over a single door. One drawer with a 6-1/2" tall face above a single door with a 22" tall face. The narrow-run workhorses, sized to fill the spans between your sink base, your range, and your corners.

Every configuration includes one adjustable 3/4" shelf coated in a clear UV protectant finish. Skin panels are required for exposed sides and are painted to match the cabinet front.

What "1-1/4" overlay" means

Doors and drawer fronts sit on top of the face frame instead of inside it, wider and taller than the opening, covering all but a sliver. Only 1/4" of face frame shows to the left and right of each door and drawer front. On base cabinets, 1" of frame is exposed above the top drawer — deliberate, and there to clear the front edge lip of your countertop, which varies by material and edge profile.

Across a run of cabinets you get a nearly continuous face with minimal frame lines breaking it up.

The finish

Manhattan Cream in a factory-baked, water-based UV-cured lacquer with a satin sheen. Cured under UV lamps in a controlled line rather than air-dried on site, which is why it resists moisture, steam, and abrasion better than a field-applied finish.

How it's built

Solid birch and plywood, not veneer over composite. The face frame is 3/4" solid birch. Side panels are 1/2" 7-ply plywood, joined to the face frame with a French cleat and reinforced with a plywood side band. The interior is natural birch plywood in clear polyurethane, and the back panel is grade A finished natural birch over engineered plywood for rigidity. Corner brackets hold the box square during installation.

Drawer boxes are solid birch with dovetail joinery, running on full-extension soft-close undermount glides with peg lock. Use a small amount of glue when assembling the drawer box. Hidden European soft-close hinges. Hardware carries a lifetime warranty. California CARB2 compliant.

Specifications

Before you order

All exposed exterior cabinet surfaces require skin panels and trim to finish, and toe kicks require skin panels matched to the cabinet front. Budget for these — they're what makes an installed run look built rather than assembled. All assembly hardware is included. Handles are not included.

FAQ block

What base cabinet widths are available?
9" through [WIDEST]". The 9" is a single full height door. From 12" to 21" you get a drawer over a single door. Above that, a drawer over two doors.

Does the 9" base cabinet have a drawer?
No. It's a single full height door, which gives you one tall uninterrupted opening instead of splitting a narrow cabinet into two small spaces.

How deep are the base cabinets?
24" for the box, 24-3/4" including the door.

How many shelves are included?
One adjustable 3/4" shelf per cabinet, finished with a clear UV protectant coating.

Are the drawer boxes dovetailed?
Yes. Solid birch with dovetail joinery, on full-extension soft-close undermount glides with peg lock. Add a small amount of glue when you assemble.

How much face frame shows with a 1-1/4" overlay?
1/4" on each side of the doors and drawer fronts, and 1" above the top drawer to clear the countertop edge lip.
