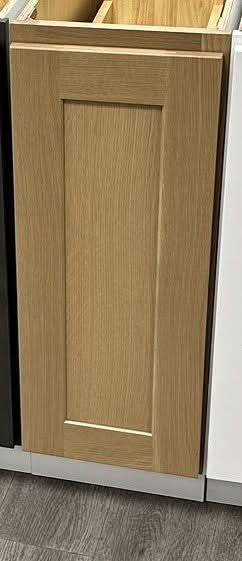

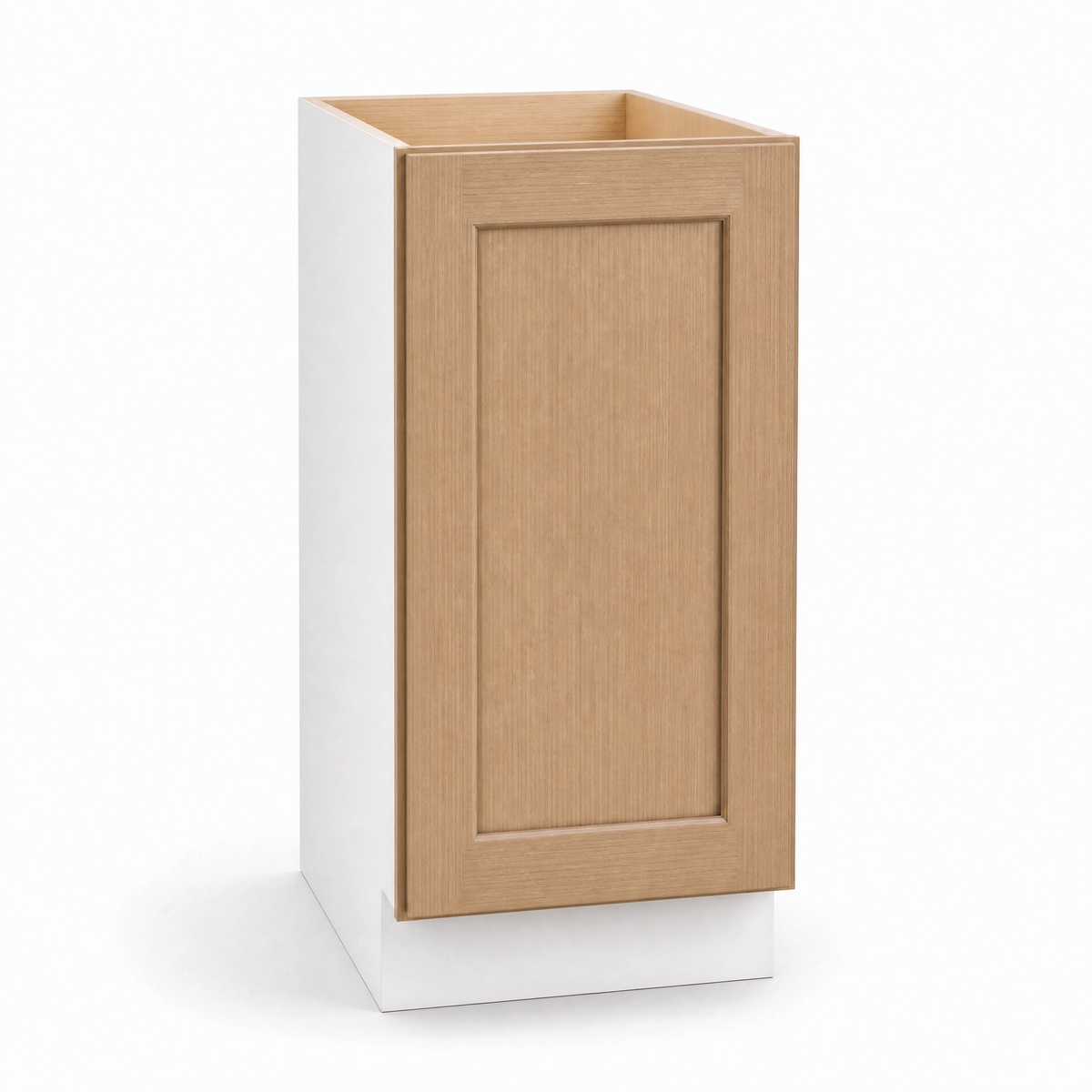

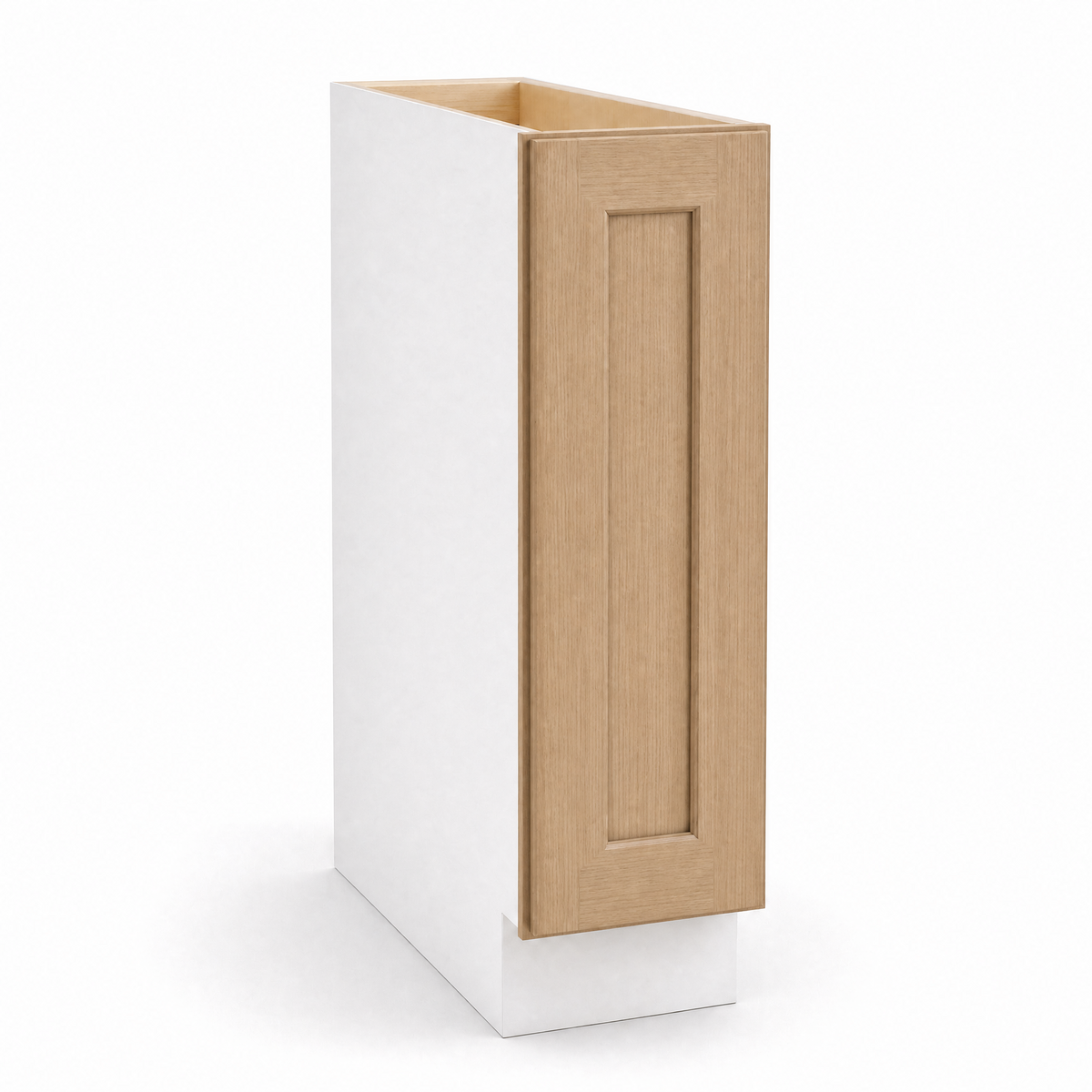

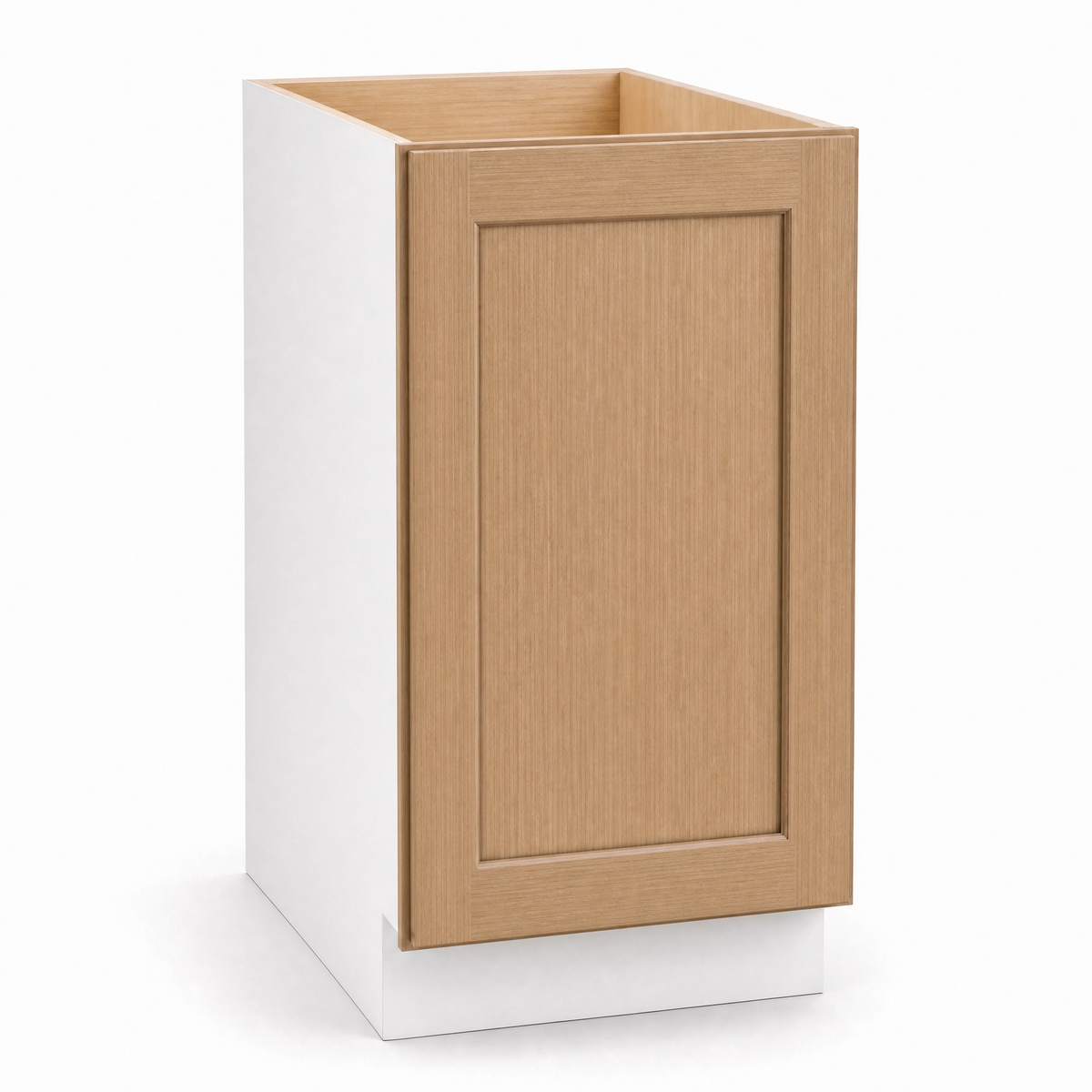

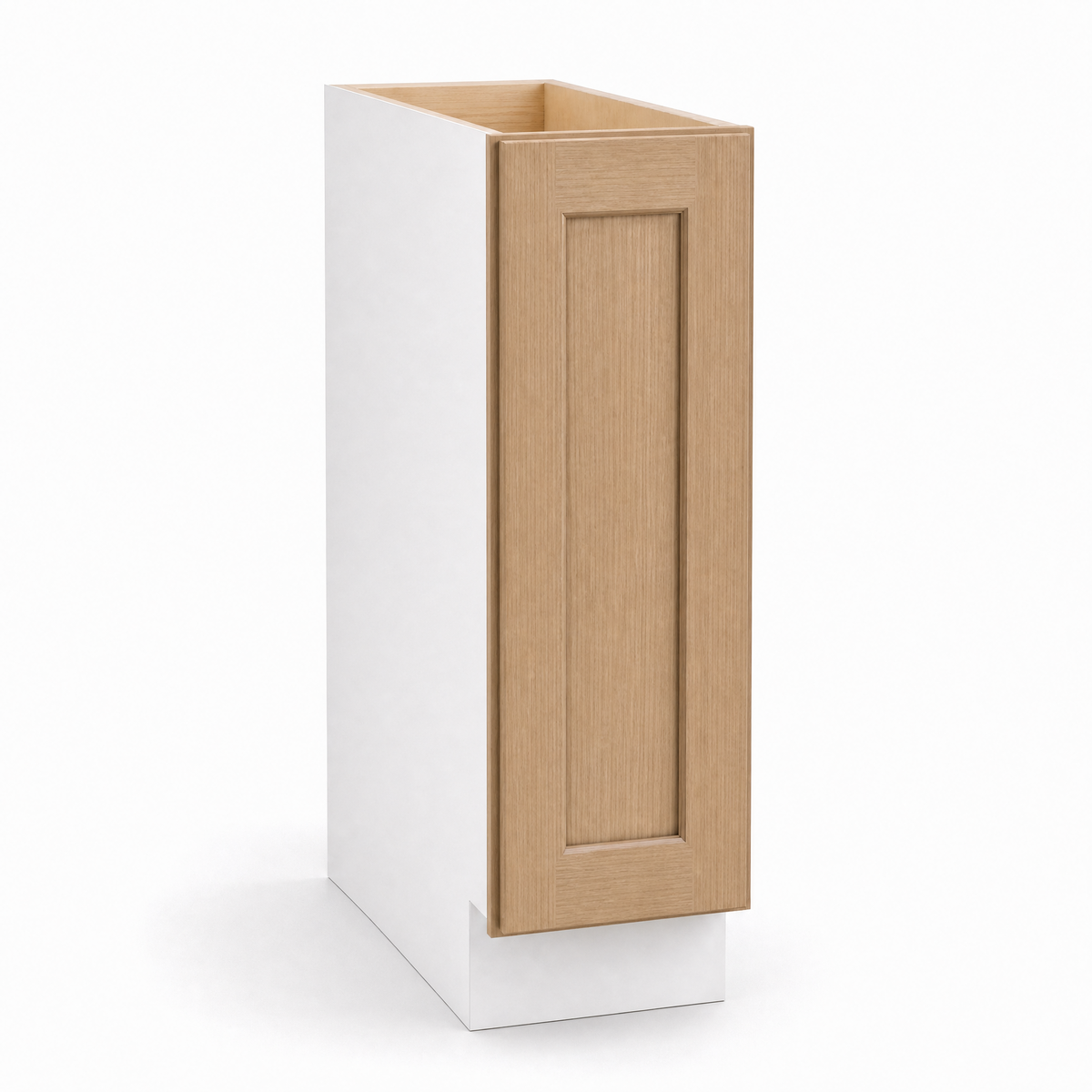

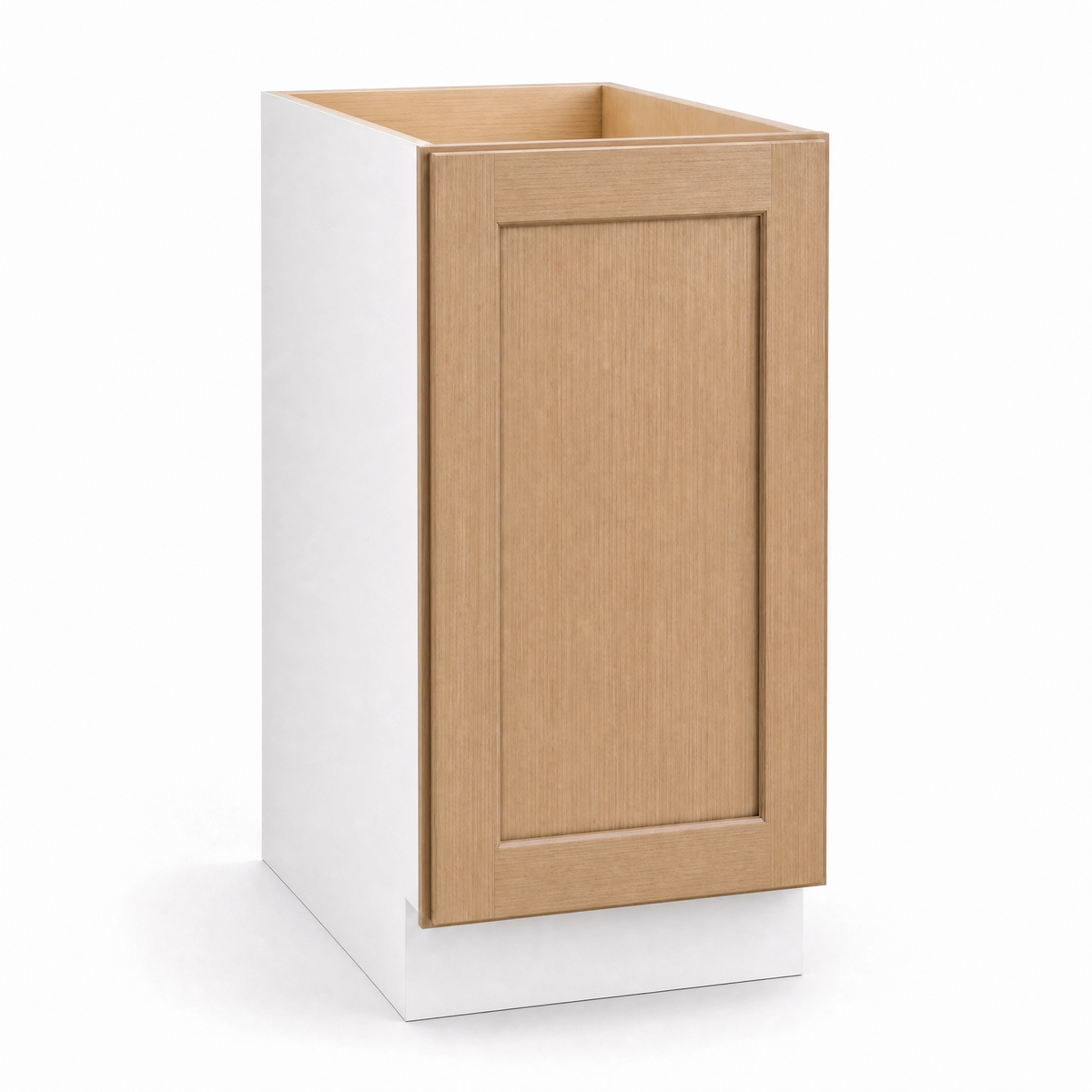

9", 12", 15", 18", 21" Wide Base Cabinet - Full Height One Door Natural Color 17ROS - Redondo White Oak Shaker 1-1/4" Overlay

Product details & specifications

Each base cabinet 9" - 21" include a pair of doors (29.5" tall face) which each "1-1/4" Overlays" wider and taller than the opening in the face frame with the minimum face frame showing.

24" deep cabinets. This cabinet can be modified to a shallower depth with limited skill.

The cabinet box and included two (2) adjustable 3/4" thick shelf is coated with a clear UV protectant finish. Oak-matched skin panels are required on exposed sides.

Our Natural 17ROS - Redondo White Oak Shaker 1-1/4" Overlay base kitchen cabinets, the perfect addition to any kitchen remodel or new construction project. These cabinets are ready to assemble (RTA) and feature a single top drawer and lower section with two doors, providing ample storage space for all of your kitchen essentials.

The "1-1/4" Overlay" style cabinet has doors that are wider and taller than the opening in the face frame with a minimum of face frame showing. Only 1/4" of face frame is exposed left and right of the Door(s) / Drawer(s) and one inch (1") of face frame exposed on base cabinets above the top drawer to allow for varying front edge lip on countertops.

Construction & Finish — Natural White Oak Shaker

Doors and drawer fronts are 3/4" solid oak frames with a 1/4" plywood center panel, protected by a durable Clear UV finish that showcases the natural white oak grain. The face frame is 1-1/2" wide x 3/4" thick solid oak with the same Clear UV finish.

The cabinet box is 1/2" 7-ply plywood. The interior is natural birch with a clear finish, and shelving is coated with a clear UV protectant finish. Cabinet sides are factory-finished in painted white; oak-matched skin panels are required on any exposed side so every visible surface matches the natural oak fronts. Toe kick skin is also required to match the exterior.

Installer note: the cabinet underside ships unfinished. A diligent installer will finish the bottom edge for a fully detailed installation.

Drawer boxes are solid wood with 1/2" thick sides and dovetail joints, riding on DTC D-Motion face-frame full-extension soft-close undermount slides with Peg Lock. Doors swing on European-style hidden soft-close hinges. Cabinet hardware carries a lifetime warranty. A small amount of glue is recommended when assembling drawer boxes.

In-Stock Contractor Grade A ready to assemble (RTA) white oak kitchen cabinets suit both residential new construction and remodeling projects. All hardware needed to assemble the cabinetry is included; cabinet handles are not included.

Sizing & fit

This is a stock cabinet, sold in the size options shown on this page. Check its dimensions under Construction.

Before ordering, confirm your finished opening, appliance clearances, and any exposed cabinet sides that need matching skin panels, toe kick, or trim.

Production, delivery & assembly

In stock and ready to ship. Delivery is by RTA Wholesalers company vehicle or LTL freight carrier, or you can pick up at our Carson, CA warehouse. Estimated delivery and shipping details are managed through your customer portal.

Shipping is free. Pantry cabinets and large skin panels ship on full-size pallets, so orders that include them need a $2,500 minimum to qualify for free shipping.

Returns: stock cabinets can be returned within 30 days, unassembled and in the original box. There is no restocking fee; the customer pays return shipping.

Assembly details are listed under Construction. Plan assembly and installation after delivery. Lifetime hardware warranty.

Frequently asked questions

Can I order this cabinet in a custom size or color?

No. This is a stock cabinet, sold in the sizes and finish shown on this page.

Can I return this cabinet?

Yes, within 30 days, unassembled and in the original box. There is no restocking fee; the customer pays return shipping.

What should I confirm before ordering?

Confirm the cabinet width, height, and depth, your finished opening, appliance clearances, and any exposed sides that need matching panels or trim.

Do you offer free 3D kitchen design?

Yes. RTA Wholesalers offers free 3D kitchen design. Send your measurements to rich@rtawholesalers.com or call 833-377-8663, and our team turns your layout into a complete 3D design plus an itemized cart with pricing to match. There is no cost and no obligation. Get a free 3D design.
