Rift Base Cabinet — 9″ to 21″ Widths, Single Door, Single Drawer
Rift Base Cabinet — 9″ to 21″ Widths, Single Door, Single Drawer
SKU : RIFT-B09
Couldn't load pickup availability
Built to order, delivered assembled.
Product details & specifications

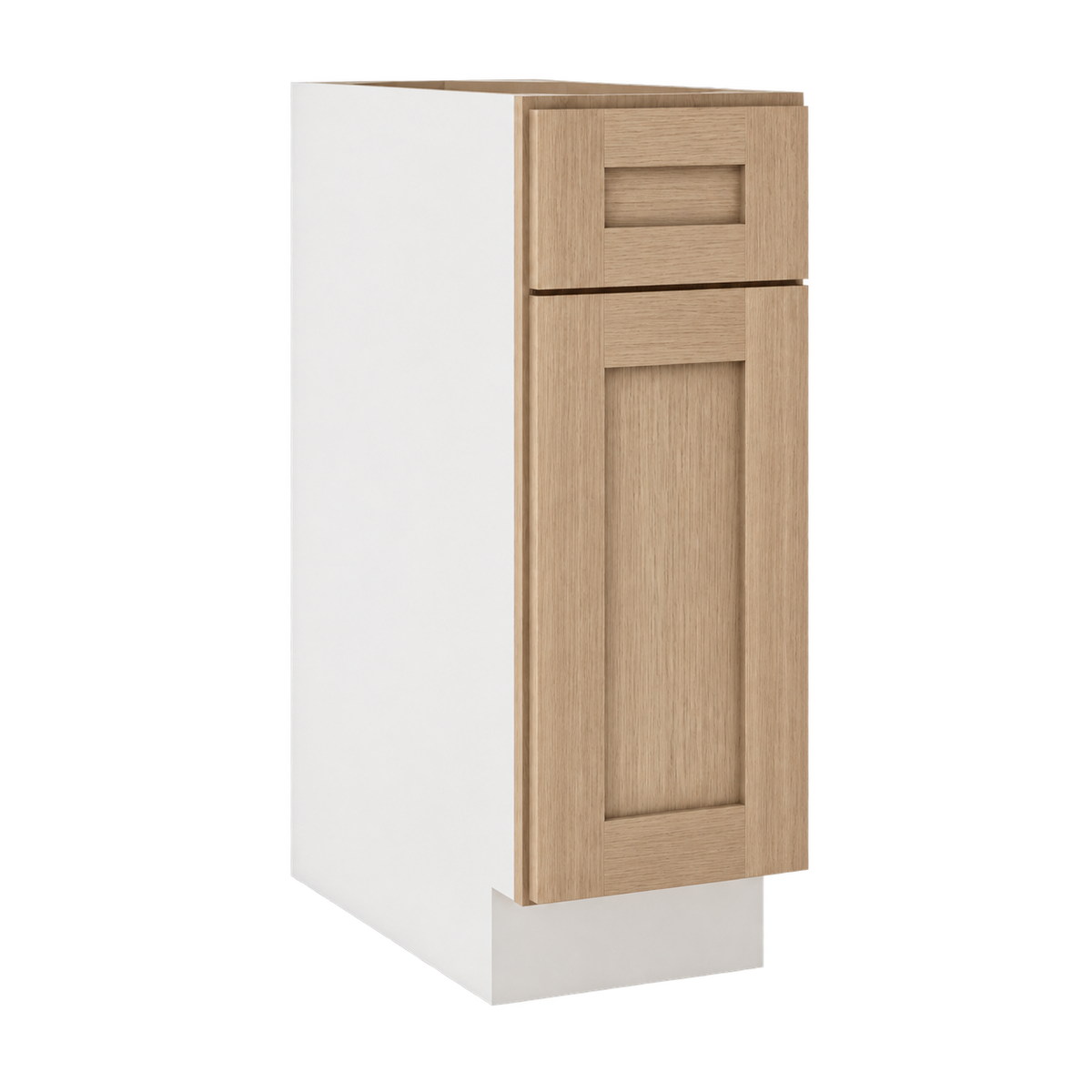

Rift Base Cabinet — 9″ to 21″ Widths, Single Door, Single Drawer
Part of Rift Cabinets, our custom line of assembled Custom Overlay cabinets. Choose the Shaker, Shaker II or Miami II door style and one of 14 stain colors. Every door style and stain is the same price.
- 3/4" quality plywood cabinet box
- 3/4" thick solid rift oak face frame
- 3/4" solid rift oak door and drawer frames
- 3/8" thick solid oak center panel on doors and drawer fronts
- Quality hardware; lifetime hardware warranty
- Delivered assembled to your home or jobsite at no charge
- Custom sizes in 1/4" steps at no extra cost: choose the nearest larger standard size, then set the finished size on this page
Door styles
Shaker
- Mortise and tenon door frame
- 1/2" solid flat panel inset into the door frame
- Door stiles and rails: 2-3/16"
- Doors over 42" tall come with a center rail
- Drawer fronts: flat slab, all sizes
- 3/4" thick, Shaker outside profile
Shaker II
- Mortise and tenon door frame
- 1/2" solid flat panel inset into the door frame
- Door stiles and rails: 2-3/4"
- Doors over 42" tall come with a center rail
- Five-piece drawer front with a mortise and tenon frame
- Drawer fronts 6-3/4" and taller: 1/2" solid flat panel; under 6-3/4": 1/4" veneer or HDF panel
- Drawer front stiles: 2-3/4"; rails: 2-3/16"
- 3/4" thick, Shaker outside profile
Miami II
- Mitered finger-joint door with wood dowel
- 1/2" solid flat panel inset into the door frame
- Door stiles and rails: 3/4" on the face, 1-3/4" on the back
- Five-piece mitered finger-joint drawer front with wood dowel, 5-5/8" and taller
- 1/2" solid flat panel inset into the drawer front frame
- Drawer front stiles and rails: 3/4" on the face, 1-3/4" on the back
- 3/4" thick, Miami outside profile
Cabinet box
- End panels: 3/4" plywood substrate with 2-sided UV natural birch
- Shelves: 3/4" plywood substrate, UV natural birch 2 sides, full depth and fully adjustable
- Hanging rails: 3/8" plywood
- Drawers: 5/8" hardwood dovetail drawer boxes. The drawer front is screwed to the sub-front. 1/4" plywood drawer bottoms, UV natural birch
- Drawer guides: full-extension undermount soft-close
- Bottoms: 3/4" natural UV birch, 2 sides
- I-beams: 3/4" natural UV birch, 2-sided, 4" wide strips dadoed into the end panels and frame, stapled through the back
- Toe kicks: 4-1/2" high x 3-1/8" deep, 3/4" plywood natural UV birch 2-sided, inset on all base and tall cabinets
- Hinges: soft-close, 6-way adjustable, fully concealed clip-on hinges
- Back panel: 1/4" UV natural birch, dadoed into the ends, stapled and glued
Standard depth and height: wall cabinets 12-3/4" deep; base cabinets 24" deep x 34-1/2" high.
Sizing & fit
Custom sizes in 1/4" steps cost nothing extra: choose the nearest larger standard size, then set the finished size with the sizing controls on this page.
Before ordering, confirm your finished opening, appliance clearances, and any exposed cabinet sides that need matching skin panels, toe kick, or trim.
Production, delivery & assembly
Built to order. Cabinets arrive fully assembled and are delivered to your home or jobsite at no charge.
Not sure which stain? Sample doors are $45 each and take about 3 weeks from ordering.
Custom orders require a $1,500 minimum order. Contact our team with any questions about timing or delivery.
Frequently asked questions
Do the door style and stain change the price?
No. Every door style and all 14 stains are the same price.
Can I order a custom size?
Yes. Custom sizes in 1/4-inch steps cost nothing extra. Choose the nearest larger standard size, then set the finished size on the product page.
Do Rift cabinets come assembled?
Yes. They arrive fully assembled and are delivered to your home or jobsite at no charge.
Can I see a stain before I order?
Yes. Sample doors are $45 each and take about 3 weeks from ordering.
Do you offer free 3D kitchen design?
Yes. RTA Wholesalers offers free 3D kitchen design. Send your measurements to rich@rtawholesalers.com or call 833-377-8663, and our team turns your layout into a complete 3D design plus an itemized cart with pricing to match. There is no cost and no obligation. Get a free 3D design.
