Base Cabinet - Two Doors 24", 27", 30", 33 & 36" Wide Manhattan Cream Shaker 1-1/4" Overlay

Product details & specifications

Base Cabinet, 1-1/4" Overlay Shaker. 9" to 36" wide x 24" deep (24-3/4" including door).

The cabinets that carry your countertop and do most of the work in a kitchen. Ready to assemble, contractor grade A, in Manhattan Cream shaker — suitable for new construction and remodel alike.

Three configurations across the width range, so you can fill a run without forcing your layout around cabinet limitations.

Three configurations

9" — single full height door. No drawer. One tall opening for trays, sheet pans, cutting boards, and the narrow things that have nowhere else to go. At 9" wide this closes the gap between an appliance and a wall without resorting to a dead filler panel — storage where most kitchens get a blank strip of painted wood.

12", 15", 18", 21" — drawer over a single door. One drawer with a 6-1/2" tall face above a single door with a 22" tall face. The narrow-run workhorses, sized to fill the spans between your sink base, your range, and your corners.

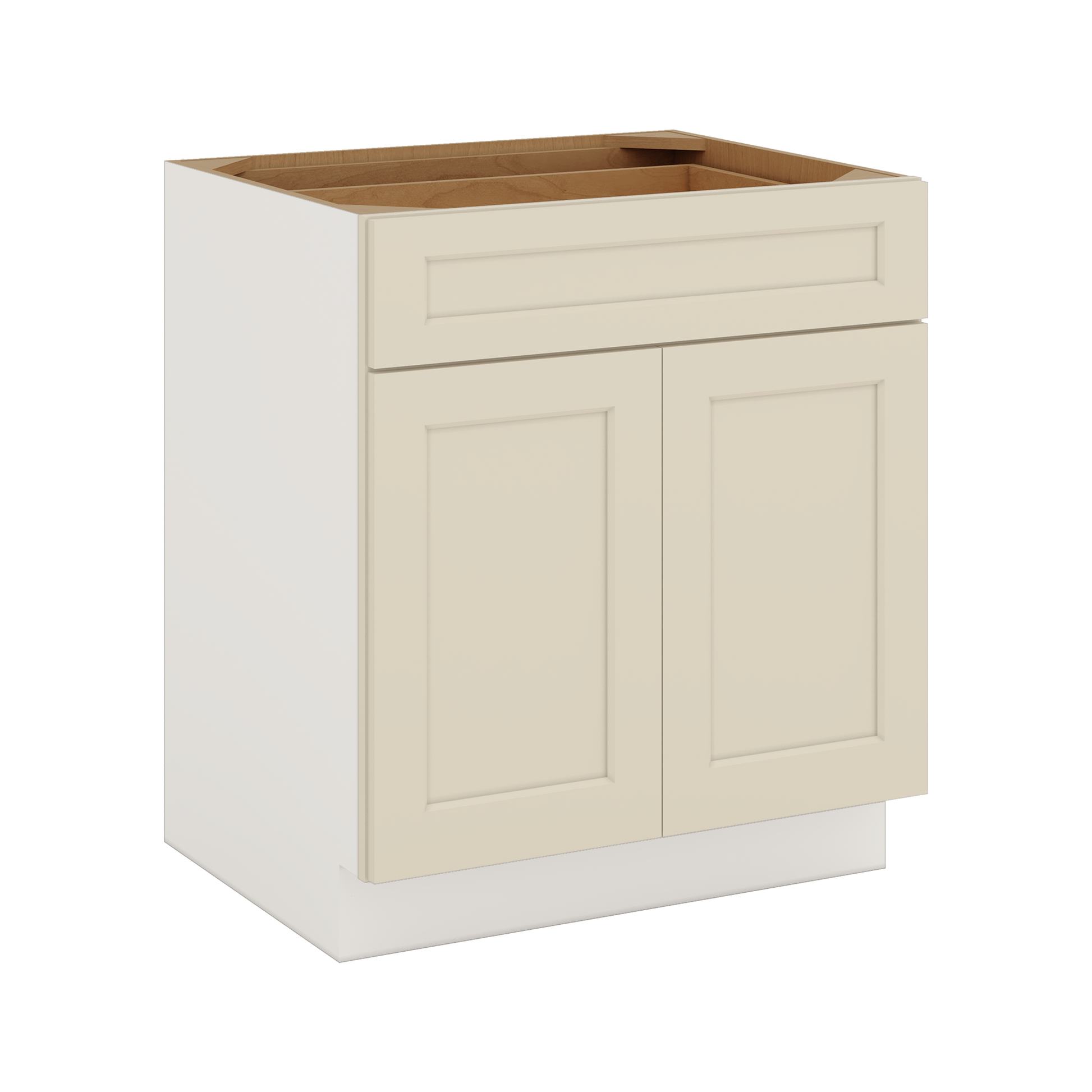

24", 27", 30", 33", 36" — drawer over two doors. One drawer with a 6-1/2" tall face above a pair of doors with 22" tall faces. Wide enough that the center stile disappears behind the overlay and the run reads continuous.

Every configuration includes one adjustable 3/4" shelf coated in a clear UV protectant finish. Skin panels are required for exposed sides and are painted to match the cabinet front.

What "1-1/4" overlay" means

Doors and drawer fronts sit on top of the face frame instead of inside it, wider and taller than the opening, covering all but a sliver. Only 1/4" of face frame shows to the left and right of each door and drawer front. On base cabinets, 1" of frame is exposed above the top drawer — deliberate, and there to clear the front edge lip of your countertop, which varies by material and edge profile.

Across a run of cabinets you get a nearly continuous face with minimal frame lines breaking it up.

The finish

Manhattan Cream in a factory-baked, water-based UV-cured lacquer with a satin sheen. Cured under UV lamps in a controlled line rather than air-dried on site, which is why it resists moisture, steam, and abrasion better than a field-applied finish.

How it's built

Solid birch and plywood, not veneer over composite. The face frame is 3/4" solid birch. Side panels are 1/2" 7-ply plywood, joined to the face frame with a French cleat and reinforced with a plywood side band. The interior is natural birch plywood in clear polyurethane, and the back panel is grade A finished natural birch over engineered plywood for rigidity. Corner brackets hold the box square during installation.

Drawer boxes are solid birch with dovetail joinery, running on full-extension soft-close undermount glides with peg lock. Use a small amount of glue when assembling the drawer box. Hidden European soft-close hinges. Hardware carries a lifetime warranty. California CARB2 compliant.

Specifications

Before you order

All exposed exterior cabinet surfaces require skin panels and trim to finish, and toe kicks require skin panels matched to the cabinet front. Budget for these — they're what makes an installed run look built rather than assembled. All assembly hardware is included. Handles are not included.

FAQ block

What base cabinet widths are available?
9" through 36". The 9" is a single full height door. From 12" to 21" you get a drawer over a single door. From 24" to 36", a drawer over two doors.

Does the 9" base cabinet have a drawer?
No. It's a single full height door, which gives you one tall uninterrupted opening instead of splitting a narrow cabinet into two small spaces.

How deep are the base cabinets?
24" for the box, 24-3/4" including the door.

How many shelves are included?
One adjustable 3/4" shelf per cabinet, finished with a clear UV protectant coating.

Are the drawer boxes dovetailed?
Yes. Solid birch with dovetail joinery, on full-extension soft-close undermount glides with peg lock. Add a small amount of glue when you assemble.

How much face frame shows with a 1-1/4" overlay?
1/4" on each side of the doors and drawer fronts, and 1" above the top drawer to clear the countertop edge lip.

Sizing & fit

This is a stock cabinet, sold in the size options shown on this page. Check its dimensions under Construction.

Before ordering, confirm your finished opening, appliance clearances, and any exposed cabinet sides that need matching skin panels, toe kick, or trim.

Production, delivery & assembly

In stock and ready to ship. Delivery is by RTA Wholesalers company vehicle or LTL freight carrier, or you can pick up at our Carson, CA warehouse. Estimated delivery and shipping details are managed through your customer portal.

Shipping is free. Pantry cabinets and large skin panels ship on full-size pallets, so orders that include them need a $2,500 minimum to qualify for free shipping.

Returns: stock cabinets can be returned within 30 days, unassembled and in the original box. There is no restocking fee; the customer pays return shipping.

Assembly details are listed under Construction. Plan assembly and installation after delivery. Lifetime hardware warranty.

Frequently asked questions

Can I order this cabinet in a custom size or color?

No. This is a stock cabinet, sold in the sizes and finish shown on this page.

Can I return this cabinet?

Yes, within 30 days, unassembled and in the original box. There is no restocking fee; the customer pays return shipping.

What should I confirm before ordering?

Confirm the cabinet width, height, and depth, your finished opening, appliance clearances, and any exposed sides that need matching panels or trim.
